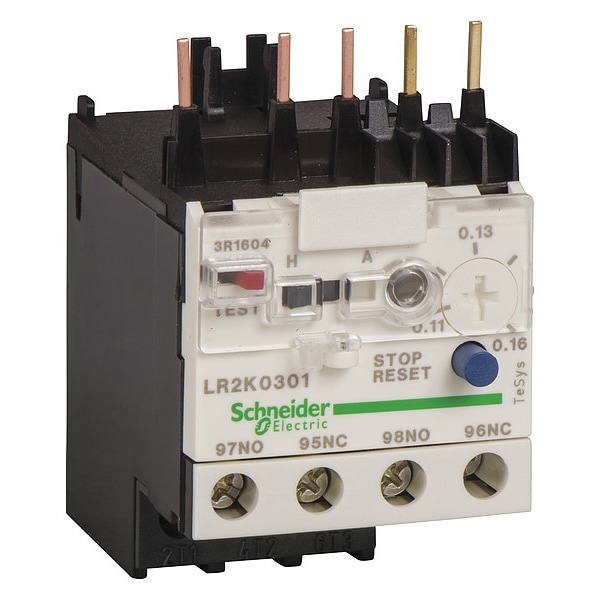

Relé de sobrecarga bimetálico 575Vac 14A Iec
| Item | Bimetallic Overload Relay 575Vac 14A Iec |
|---|---|
| Width | 45 mm |
| Height | 58 mm |
| Depth | 65 mm |
| Standards | IEC 60947 || BS 4941 || VDE 0660 || NF C 63-650 |
| Relay Application | motor protection |
| Device Short Name | LR2K |
| Mechanical Robustness | shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5 to 300 Hz IEC 60068-2-6 |
| Network Type | AC || DC |
| Flame Retardance | V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end |
| Product Name | TeSys LRK |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Thermal Protection Adjustment Range | 10 to 14 A |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Product Or Component Type | differential thermal overload relay |
| Product Certifications | UL || CSA || UKCA |
| [Ith] Conventional Free Air Thermal Current | 6 A (signalling circuit) |
| Associated Fuse Rating | 6 A gG signalling circuit VDE 0660 || 6 A gG signalling circuit IEC 60947 |
| Ambient Air Temperature For Operation | -20-55°C without derating IEC 60947 || -30-60°C with derating IEC 60947 |
| Range | TeSys |
| [Ue] Rated Operational Voltage | <= 690 V power circuit || 690 V AC AC-15 signalling circuit || 250 V DC DC-13 signalling circuit |
| Network Frequency | <= 400 Hz |
| Power Dissipation Per Pole | 2 W |
| Tightening Torque | 1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2 |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Protective Treatment | TC IEC 60068 || TC DIN 50016 |
| Product Compatibility | LC7K || LP4K || LC1K || LP1K |
| Control Type | Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset |
| Mounting Support | under contactor || plate, with specific accessories || rail, with specific accessories |
| Local Signalling | trip indicator Yellow |
| [Ui] Rated Insulation Voltage | power circuit 690 V BS 4941 || power circuit 690 V IEC 60947 || power circuit 750 V VDE 0110 group C || power circuit 600 V CSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Ambient Air Temperature For Storage | -40-70°C |
| Rated Operational Voltage | Less than or Equal to 690 V power circuit; 690 V AC AC-15 signalling circuit; 250 V DC DC-13 signalling circuit |
| Rated Insulation Voltage | Power circuit 690 V BS 4941; Power circuit 690 V IEC 60947; Power circuit 750 V VDE 0110 group C; Power circuit 600 V CSA C22.2 No 14 |
| Package Quantity | 1 |
