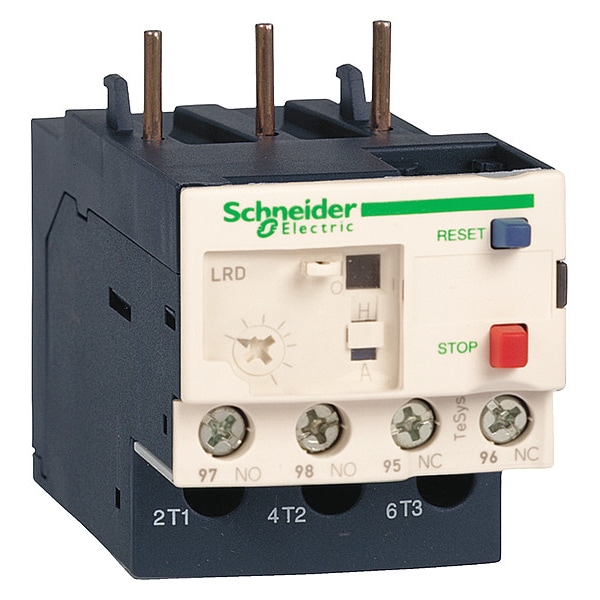

Relé de sobrecarga bimetálico 600V 6A IEC
| Item | Bimetallic Overload Relay 600V 6A Iec |
|---|---|
| Width | 45 mm |
| Height | 66 mm |
| Depth | 70 mm |
| Standards | EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495 |
| Product Certifications | IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA |
| Device Short Name | LR3D |
| [Ue] Rated Operational Voltage | 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1 |
| Ambient Air Temperature For Storage | -60-70°C |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Ambient Air Temperature For Operation | -20-60°C without derating IEC 60947-4-1 |
| Associated Fuse Rating | 4 A gG signalling circuit || 4 A BS signalling circuit |
| Flame Retardance | V1 conforming to UL 94 |
| Mounting Support | plate, with specific accessories || rail, with specific accessories || under contactor |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Relay Application | motor protection |
| Permissible Current | 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit |
| Thermal Protection Adjustment Range | 4 to 6 A |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Temperature Compensation | -20-60°C |
| Control Type | Red push-button stop || Blue push-button reset |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| Product Compatibility | LC1D12 || LC1D18 || LC1D32 || LC1D25 || LC1D09 || LC1D38 |
| Network Frequency | 0 to 400 Hz |
| Range | TeSys || TeSys Deca |
| Climatic Withstand | IACS E10 |
| Product Or Component Type | non differential thermal overload relay |
| Network Type | DC || AC |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals |
| Product Name | TeSys LRD || TeSys Deca |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1 |
| Package Quantity | 1 |
