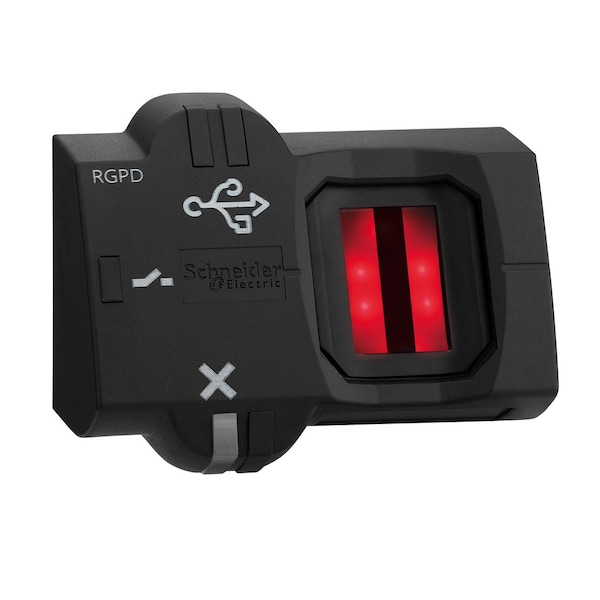

El interruptor biométrico monostable RGPD de Schneider Electric, modelo Harmony XB5S, está fabricado en plástico y cuenta con un diámetro de 22mm. Con conexión USB a través de conector M12 y funcionamiento a 24V CA CC.
| Item | BIOMETRIC SWITCH, USB COMMUNICATION, 1 M |
|---|---|
| Standards | IEC 61000-6-2 |
| Connector Type | USB type A male 1 m |
| [Ures] Residual Voltage | 1 V closed state |
| Function of Module | monostable |
| Short-Circuit Protection | 250 mA external fuse gG |
| Vibration Resistance | +/- 3 mm 5-9 Hz)IEC 60068-2-6 |
| Maximum Switching Current | 200 mA |
| Ambient Air Temperature For Storage | -25-70°C |
| Marking | CE |
| Cable Insulation Material | PvR |
| Bezel Material | Plastic |
| Product or Component Type | biometric switch RGPD |
| Protection Type | overload protection |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Nema Degree of Protection | NEMA 12 |
| Supply Voltage Limits | 20-30 V DC |
| Memory Usage | 200 users with up to 2 fingerprints per user |
| Maximum Delay Response | 1.5 s |
| Maximum Delay Recovery | 1.5 s |
| Current Consumption | <= 70 mA no-load |
| Software Designation | XB5SSoft |
| Mounting Diameter | 22 mm |
| Product Specific Application | industrial machines |
| Electrical Connection | M12 connector 0.2 m |
| [Us] Rated Supply Voltage | 24 V DC |
| Operator Profile | fingerprint reader |
| Maximum Delay First Up | 3 s + 0.5 ms per user registered |
| Type of Operator | momentary |
| Device Short Name | XB5S |
| Local Signalling | for output state indicator 1 LED (green) |
| Operating Position | flat surface installation |
| Communication Port Protocol | USB |
| Range of Product | Harmony XB5S |
| Ambient Air Temperature For Operation | -5-50°C |
| Enclosure Material | polyamide PA66 |
| Output Type | PNP |
| Ip Degree of Protection | IP20 EN/IEC 60529 rear face) |
| Package Quantity | 1 |
