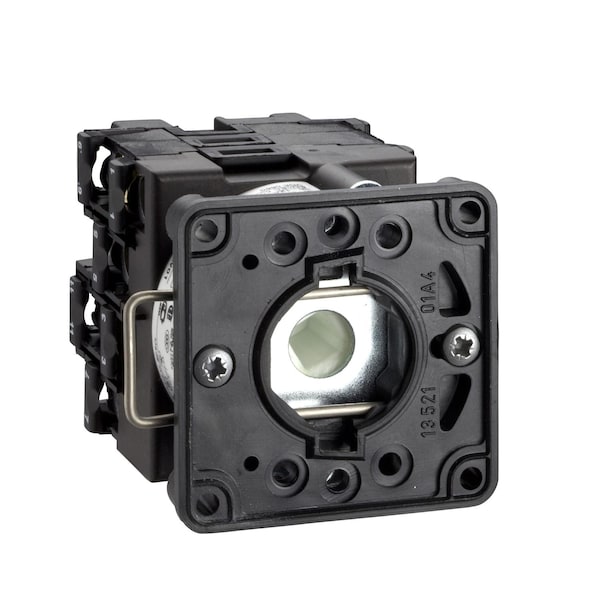

Cuerpo para interruptor de paso, Harmony K, Ø 22mm, plástico, 1 polo, 4 pasos, 45°, 12A.
| Item | Body for stepping switch - 1 pole - 45 - |
|---|---|
| Standards | IEC 60947-3 power circuit, IEC 60947-5-1 control circuit, CENELEC EN 50013 |
| Electrical Connection | captive screw clamp terminals flexible 2 x 1.5 mm², captive screw clamp terminals solid 1 x 2.5 mm² |
| Mechanical Durability | 1000000 cycles |
| Protective Treatment | TC |
| [Ui] Rated Insulation Voltage | 690 V 3)IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 12A |
| Switching Angle | 45° |
| [Ie] Rated Operational Current AC | 1.8 A 690 V AC-3 3 phase IEC 947-3 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1 || 2.8 A 500 V AC-3 3 phase IEC 947-3 || 2.8 A 690 V AC-23A 3 phase IEC 947-3 || 3.3 A 400 V AC-3 3 phase IEC 947-3 || 3.8 A 500 V AC-23A 3 phase IEC 947-3 || 4.6 A 230 V AC-3 3 phase IEC 947-3 || 4.8 A 400 V AC-23A 3 phase IEC 947-3 || 5.6 A 230 V AC-23A 3 phase IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 |
| Rated Operational Power In W | 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3 |
| Poles Description | 1P |
| Fixing Mode | Ø 22 mm hole |
| Range of Product | Harmony K |
| Sub-Assembly Composition | contact blocks + fixing plate |
| Bezel Material | plastic |
| Ambient Air Temperature For Operation | -25-55°C |
| Number of Steps | 4 |
| Electrical Durability | 1000000 cycles AC-15, 1000000 cycles AC-21, 500000 cycles AC-23, 500000 cycles AC-3 |
| Short-Circuit Current | 10,000 A |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV in isolating function, 6 kV IEC 947-1 |
| Product or Component Type | cam switch body |
| Positive Opening | with |
| Component Name | K1 |
| Off Position | without Off position |
| Switching Positions | right: 0° - 45° - 90° - 135° |
| Mounting Location | front |
| Short-Circuit Protection | 16 A cartridge fuse gG |
| [Ithe] Conventional Enclosed Thermal Current | 10A |
| Ambient Air Temperature For Storage | -40-70°C |
| Cam Switch Function | stepping switch |
| Maximum Operating Rate | 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15 |
| Shock Resistance | 30 gn IEC 68-2-27 |
| Vibration Resistance | 5 gn 10-150 Hz)IEC 68-2-6 |
| Contact Operation | slow-break |
| Product Certifications | CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phase 2 || UL 240 V 1 hp 3 phase || UL 240 V 0.33 hp 1 phase 2 |
| Package Quantity | 1 |
