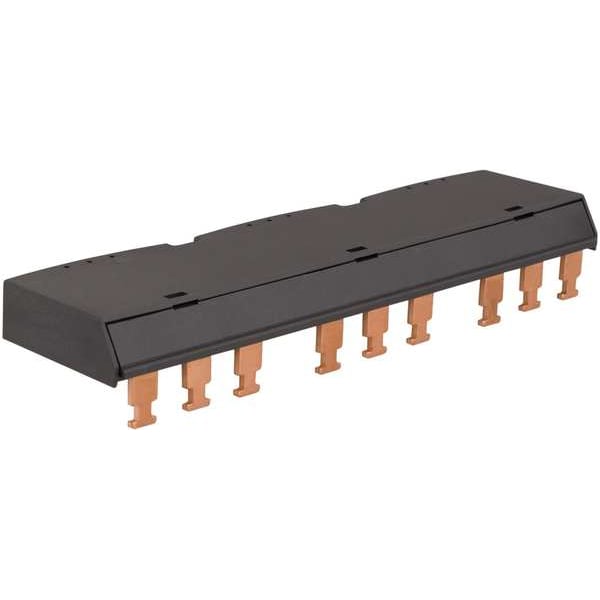

Barra de bus, 3 polos, 3 derivaciones, 115A, para GV3P.
| Item | Bus Bar |
|---|---|
| For Use With | TeSys Series GV3P Starters |
| Features | 3-Pole, 3 Tap-Offs, 115A |
| Accessory Type | Bus Bar |
| Range Compatibility | TeSys Deca || TeSys K || TeSys U || TeSys GV3 |
| Poles Description | 3P |
| [Ith] Conventional Free Air Thermal Current | 115 A |
| [Ui] Rated Insulation Voltage | 690 V |
| Product Name | FT |
| Product Or Component Type | comb busbar |
| Product Compatibility | LC1D40A...D65A || GV3L || GV3P |
| Connection Pitch | 64 mm |
| Mounting Location | on terminal |
| Device Short Name | GV3G |
| Number Of Tap-Offs | 3 |
| Accessory / Separate Part Category | connection accessory |
| Range | Linergy |
| Standards | REACH, RoHS |
| Maximum Voltage Rating | 690 V AC |
| Compatible with Series | TeSys Deca |
| Package Quantity | 1 |
