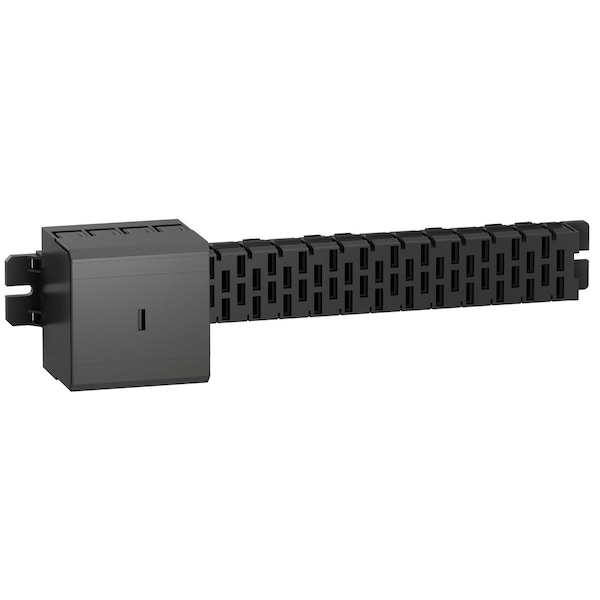

Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm
| Item | Busbar |
|---|---|
| Amps | 160A |
| Height | 992 mm |
| Width | 81 mm |
| Depth | 82 mm |
| Standards | IEC 60439 |
| Network Type | AC |
| Bar Width | 45 mm |
| Connections - Terminals | connector 2.5-70 mm2² flexible with cable end || connector 2.5-70 mm2² rigid |
| Mounting Position | vertical using side stop AK5BT01 on mounting plates AK5PA || horizontal |
| Ip Degree Of Protection | IPxx B conforming to IEC 60529 |
| Device Application | Distribution |
| Number Of Tap-Offs | 48 |
| Product Certifications | DNV || CSA || LROS || UL |
| [Ui] Rated Insulation Voltage | 600 V CSA || 600 V UL || 690 V IEC 60439-1 |
| Number Of Conductors | 4 |
| Enclosure/Cubicle Width | 1,200 mm |
| Range | Linergy |
| [Ie] Rated Operational Current | 160 A 35DegC |
| [Ue] Rated Operational Voltage | 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and unplugging, with supply switched off)CSA || 600 V plugging-in and unplugging, with supply switched off)UL || 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1 |
| Network Frequency | 50/60 Hz |
| Peak Current | 25 kA |
| Protection Type | aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A |
| Flame Retardance | V0 conforming to UL 94 |
| Tightening Torque | 10 N.m |
| I2²T On Activation | 10000000 A2².s |
| Fire Resistance | 850DegC IEC 60695 |
| I²T On Activation | 10000000 A².s |
| Package Quantity | 1 |
