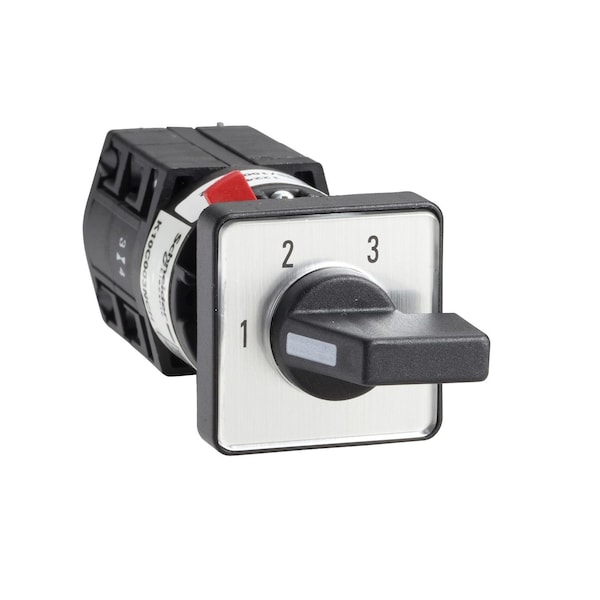

Interruptor escalonado Cam, Harmony K, Ø16 o 22mm, material plástico, 1 polo, posición 0, 4 pasos + posición 0, 30°, capacidad de 10 amperios, tamaño 30x30mm, marcado 0/1/2/3/4
| Item | Cam stepping switch - 1 pole - 30 - 10 A |
|---|---|
| Height | 30 mm |
| Standards | CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1 |
| Width | 30 mm |
| [Ie] Rated Operational Current AC | 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15 |
| Type of Operator | handle |
| Electrical Durability | 100,000,000 cycle |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rotary Handle Padlocking | without |
| Off Position | with Off position |
| [Ui] Rated Insulation Voltage | 440 V 3)IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Electrical Shock Protection Class | class II IEC 60536 |
| Contact Operation | slow-break |
| Range of Product | Harmony K |
| Poles Description | 1 P |
| Switching Positions | right: 270° - 300° - 330° - 0° - 30° |
| Product Mounting | front mounting |
| Electrical Connection | captive screw clamp terminals 2 x 1.5 mm² |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Ip Degree of Protection | contact block IP20 || operating head IP65 IEC 60529 |
| Rated Operational Power In W | 370 W AC-23A, 110/120 V 1 phase, 750 W AC-23A, 220/240 V 1 phase |
| Cam Switch Function | stepping switch |
| Product or Component Type | complete cam switch |
| Ambient Air Temperature For Operation | -20-55°C |
| [Ie] Rated Operational Current DC | 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive |
| Protective Treatment | TC |
| Mechanical Durability | 1,000,000 cycle |
| Switching Angle | 30 deg |
| Rated Power In Hp | 0.33 hp 110/120 V AC, 1 phase, 0.75 hp 220/240 V AC, 1 phase |
| Presentation of Legend | with metallic, 0 - 1 - 2 - 3 - 4 black |
| Component Name | K10 |
| Number of Steps | 4 |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Fixing Mode | Ø 16 or 22 mm hole |
| Cam Switch Head Type | with front plate 30 x 30 mm |
| Return | Without |
| Product Certifications | cULus |
| Cad Overall Depth | 88 mm |
| Conventional Free Air Thermal Current | 10 A |
| Rated Operational Current DC | 10 A 24 V resistive; 0.3 A 220 V resistive; 0.7 A 110 V resistive |
| Cad Overall Width | 30 mm |
| Cad Overall Height | 30 mm |
| Rated Operational Current AC | 10 A 400 V AC-1; 10 A 400 V AC-21A; 3 A 240 V AC-15; 6 A 120 V AC-15 |
| Package Quantity | 1 |
