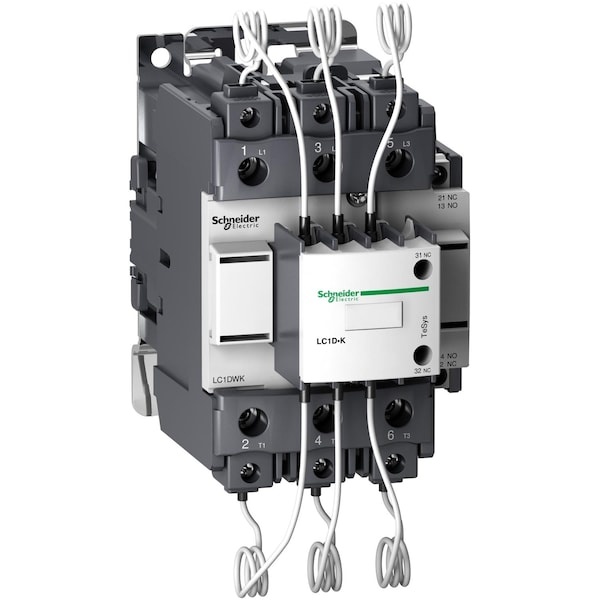

Contacto de capacitor, Tesys Deca, 63kVAR a 400/415V 50Hz, bobina de 120V CA 50/60Hz, terminales de tornillo de sujeción.
| Item | TeSys LC1D.K capacitor duty contactor - |
|---|---|
| Height | 180 mm |
| Width | 85 mm |
| Depth | 154 mm |
| Standards | EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 |
| Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
| Range | TeSys |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Product Certifications | IECEE CB Scheme || UL || CSA || UKCA |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| [Ue] Rated Operational Voltage | power circuit 690 V AC 50/60 Hz |
| Connections - Terminals | control circuit screw clamp terminals 1 1-4 mm² solid || control circuit screw clamp terminals 2 1-4 mm² solid || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit connector 1 4-50 mm² solid || power circuit connector 2 4-25 mm² solid || power circuit connector 1 4-50 mm² flexible without cable end || power circuit connector 2 4-25 mm² flexible without cable end || power circuit connector 1 4-50 mm² flexible with cable end || power circuit connector 2 4-16 mm² flexible with cable end |
| Ambient Air Temperature For Operation | -5-60°C |
| Device Application | control |
| Electrical Durability | 300000 cycles 400 V || 200000 cycles 690 V |
| Poles Description | 3P |
| Device Location In System | inside delta interruption || line interruption |
| Utilisation Category | AC-6b |
| Product Or Component Type | Contactor |
| Pole Contact Composition | 3 NO |
| Tightening Torque | power circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals |
| Product Name | TeSys LC1D.K || TeSys Deca |
| Reactive Power Rating | 35 kvar 230-230 V AC 50 Hz 60°C || 63 kvar 400-400 V AC 50 Hz 60°C || 67 kvar 440-440 V AC 50 Hz 60°C || 104 kvar 690-690 V AC 50 Hz 60°C || 30 kvar 230-230 V AC 60 Hz 60°C || 60 kvar 460-460 V AC 60 Hz 60°C || 80 kvar 575-575 V AC 60 Hz 60°C |
| Ambient Air Temperature For Storage | -60-80°C |
| Contactor Application | power factor correction |
| Device Short Name | LC1DWK |
| Operating Altitude | 0 to 9842.52 ft (0 to 3000 m) |
| Maximum Operating Rate | 240 cyc/h |
| Mounting Support | rail || plate |
| Control Circuit Type | AC 50/60 Hz |
| Auxiliary Contacts Type | mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
| Package Quantity | 1 |
