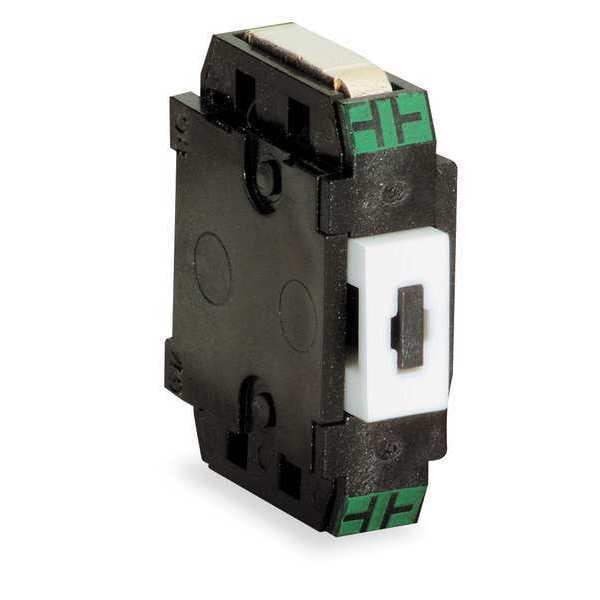

Cartucho, Contacto
| Item | Master Cartridge |
|---|---|
| For Use With | Control Relay |
| Accessory Group | F |
| Amps AC | 20 |
| Standards | CE Certified, CSA Certified, RoHS Compliant, UL Listed |
| Case Color | Blue |
| Module Function | Expansion |
| Includes | Not Applicable |
| Product Or Component Type | contact cartridge |
| Contacts Type And Composition | 1 NO 1 contact cartridge |
| [Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 |
| Product Certifications | UL recognized E78403 CCN NKCR2 || CE || CSA LR60905 class 3211 02 |
| Relay Type | control |
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 |
| Rated Short Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508 |
| Package Quantity | 1 |
