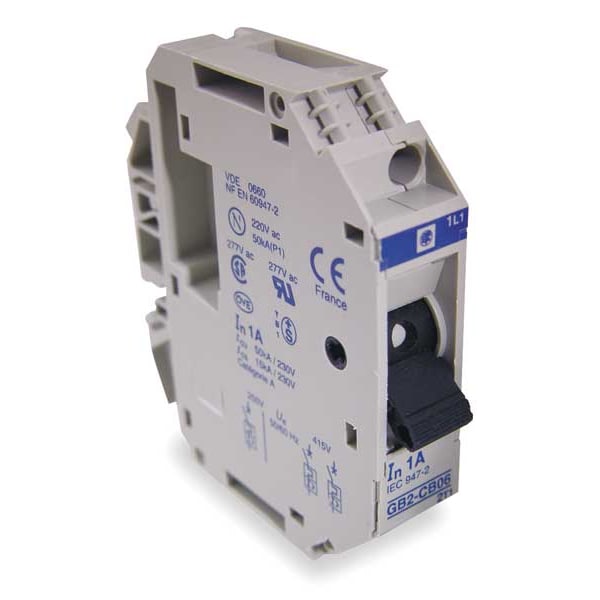

Circuit Breaker, GB2 Series, 1A, 1 Pole, 250/277V AC, 50kA at 240V AC

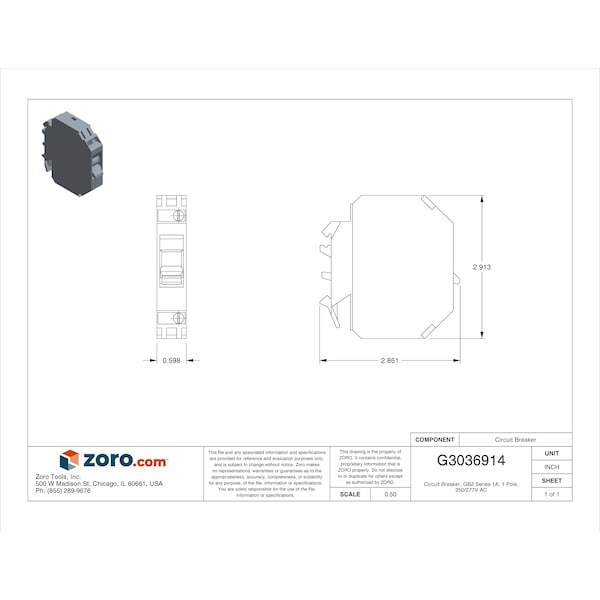

| CAD Available | Yes |
|---|---|
| Item | Circuit Breaker |
| Series | GB2 |
| Amps | 1A |
| Number of Poles | 1 |
| AC Voltage Rating | 250/277V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 50kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Connectors |
| Width | 0.59 in |
| Depth | 2.64 in |
| Height | 2.91 in |
| DC Voltage Rating | 48V DC |
| For Use With | 35mm DIN Rail |
| Pieces per Foot | 10 |
| Interrupt Rating | 50kA at 230/240V AC |
| Min. Wire Size | 16 AWG |
| Max. Wire Size | 12 AWG |
| Features | Mercury Free |
| High Amp Trip Setting | 14 A |
| Standards | EN/IEC 60947-1EN/IEC 60947-2CSA C22.2 No 235UL 1077 |
| Application | Control Applications |
| Overall Width | 1.2 in |
| Number of Tiers | 1 |
| Current | 1 A |
| Connection Type | Clips |
| Circuit Protection Type | Circuit Breaker |
| Overall Length | 3 in |
| For Maximum Wire Size | 12 AWG |
| For Conductor Type | Not Applicable |
| Overall Depth | 3.3 in |
| Housing Color | Gray |
| For Minimum Wire Size | 16 AWG |
| Maximum Voltage | 300 V AC |
| Voltage | 300V AC |
| Package Quantity | 1 |
