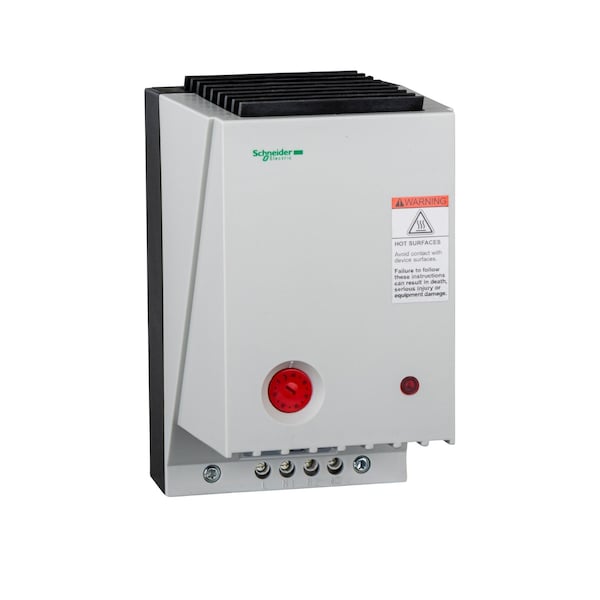

ClimaSys PTC heating resistance 350-500W, 230V insulate thermoventilator
| Item | ClimaSys PTC heating resistance 350-550W |
|---|---|
| Width | 155 mm |
| Height | 150 mm |
| Depth | 215 mm |
| Operating Position | Vertical |
| Power Range | 400...550 W |
| Condition Of Use | air sealed enclosure || heaters must be installed with a thermal controller || electrical protection is needed |
| Electrical Connection | 2 screw terminals 2.5 mm² |
| Temperature Setting Range | 0-60 °C |
| Input Voltage | 230 V AC 50/60 Hz |
| Range | ClimaSys |
| Product Or Component Type | resistance heater with fan and thermostat |
| Mounting Support | 35 mm DIN rail |
| Ip Degree Of Protection | IP20 |
| Product Name | ClimaSys CR |
| Fixing Mode | by clips |
| Product Certifications | UL || VDE |
| Ambient Air Temperature For Operation | -40-70 °C |
| Package Quantity | 1 |
