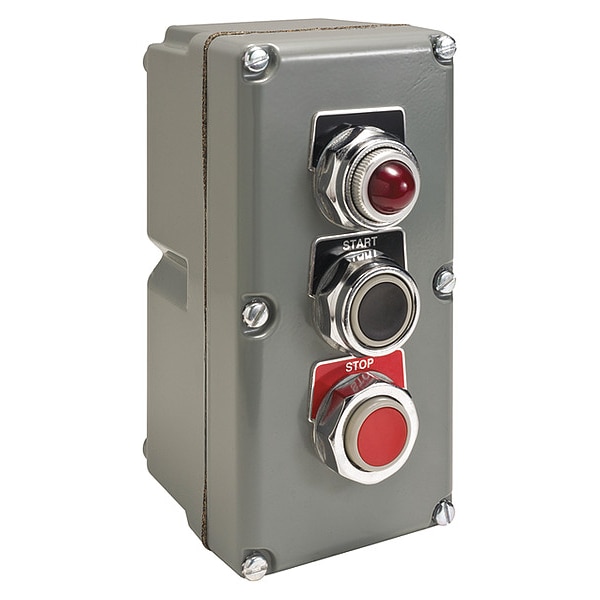

Estación de control, calle sin salida, 2 botones, negro/rojo, 1 luz.
| Item | Control Station |
|---|---|
| Contact Form | 1NO/1NC |
| Number of Gangs | 1 |
| Legend | Stop, Start |
| Number of Pilot Lights | 1 |
| Type of Operator | Push Button |
| Number of Operators | 2 |
| Series | 9001K |
| NEMA Rating | 13, 3, 4 |
| Hub Style | Dead-End |
| Size | 30 mm |
| Standards | UL Listed |
| For Use With | indoor/outdoor |
| Contact Rating | 10A |
| Action | Momentary |
| Hub | 3/4 in NPT |
| Enclosure Material | Zinc |
| Operator Color | Red, Black |
| Mounting Style | Surface |
| Terminal Connection | screw-clamp terminals |
| Mounting | Surface |
| IP Rating | IP66 |
| Enclosure Color | Gray |
| Number of Speeds | 1 |
| Overall Depth | 3.53 in |
| Hazardous Location Specification | Class II, Div 2, Group G, Class III, Div 1 and 2 |
| Pilot Light Color | Red |
| Product Type | Control Station |
| Hub Size - Maximum | 3/4 in |
| Maintained Action Release | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Mounting Orientation | Not Applicable |
| Selector Switch Number of Positions | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 13, 3, 4 |
| Operating Temperature - Minimum | -13 deg F |
| DC Contact Rating | 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Overall Width | 3.62 in |
| Operator Configuration | Buttons |
| Overall Height | 7 in |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
