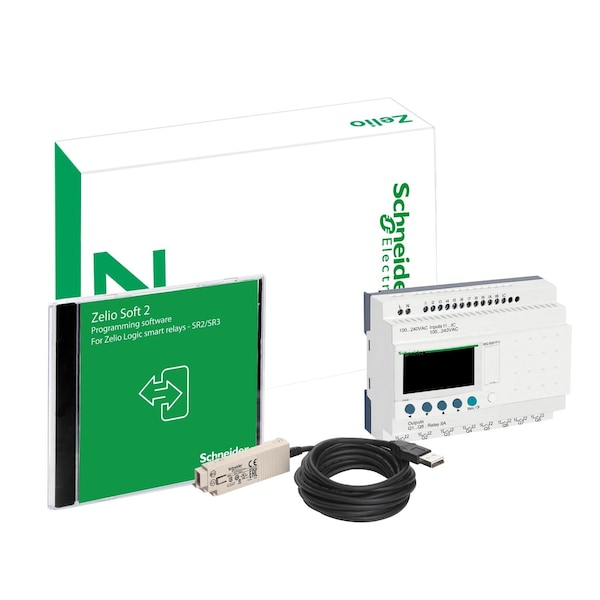

Paquetes de descubrimiento compactos, Zelio Logic, paquete de descubrimiento de relé inteligente, 20 E/S, 100...240 V CA.
| Item | Zelio Sr2Pack Compact 20 Io 100240Vac |
|---|---|
| Number of Outputs | 8 relay |
| Clock | without |
| Coil Volts | 100 to 240 VAC |
| Standards | IEC 61000-4-2 level 3, IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 60068-2-6 Fc, IEC 61000-4-4 level 3, IEC 61000-4-12, IEC 61000-4-11 |
| Response Time | 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input, 50...255 ms FBD from state 0 to state 1)discrete input, 50...255 ms FBD from state 1 to state 0)discrete input, 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output |
| Supply Voltage Limits | 85-264 V |
| Input/Output Number | 20 |
| Ambient Air Temperature For Operation | -20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2 |
| Overvoltage Category | III IEC 60664-1 |
| Voltage State 0 Guaranteed | <= 40 V discrete input |
| Electrical Durability | AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 |
| Kit Composition | SR2B201FU, cable PC SR2USB01 for connection to PC |
| Supply Frequency | 50/60 Hz |
| Power Consumption In Va | 11 VA without extension |
| Voltage State 1 Guaranteed | >= 79 V discrete input |
| Output Thermal Current | 8 A for all 8 outputs relay output |
| Number or Control Scheme Lines | 120-120 ladder |
| Input Impedance | 350 kOhm discrete input |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Isolation Voltage | 1780 V |
| Discrete Input Current | 0.6 mA |
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Backup Time | 10 years 25°C |
| Maximum Supply Current | 100 mA 100 V without extension), 50 mA 240 V without extension) |
| Environmental Characteristic | EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2 |
| Cycle Time | 6 to 90 msec |
| Tightening Torque | 0.5 N.m |
| Pvc Free | Yes |
| Connections - Terminals | screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end |
| Discrete Input Number | 12 |
| Mechanical Durability | 10000000 cycles relay output |
| Protection Type | against inversion of terminals (control instructions not executed) |
| Discrete Input Frequency | 57...63 Hz, 47...53 Hz |
| Current State 0 Guaranteed | <= 0.5 mA discrete input) |
| Maximum Altitude Transport | 3048 m |
| Ambient Air Temperature For Storage | -40-70°C |
| [Us] Rated Supply Voltage | 100...240 V |
| Current State 1 Guaranteed | >= 0.17 mA discrete input) |
| Range of Product | Zelio Logic |
| Immunity To Microbreaks | 10 msec |
| Contacts Type And Composition | NO relay output |
| Local Display | with |
| Clock Drift | 12 min/year 0-55°C, 6 s/month 25-25°C |
| Discrete Input Voltage | 100...240 V AC |
| Ip Degree of Protection | IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel) |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Pollution Degree | 2 IEC 61131-2 |
| Output Voltage Limits | 5...30 V DC relay output), 24...250 V AC |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output, 10 Hz no load)relay output |
| Product or Component Type | compact discovery packs |
| Checks | program memory on each power up |
| Product Certifications | GOST, UL || C-tick || GL || CSA |
| Package Quantity | 1 |
