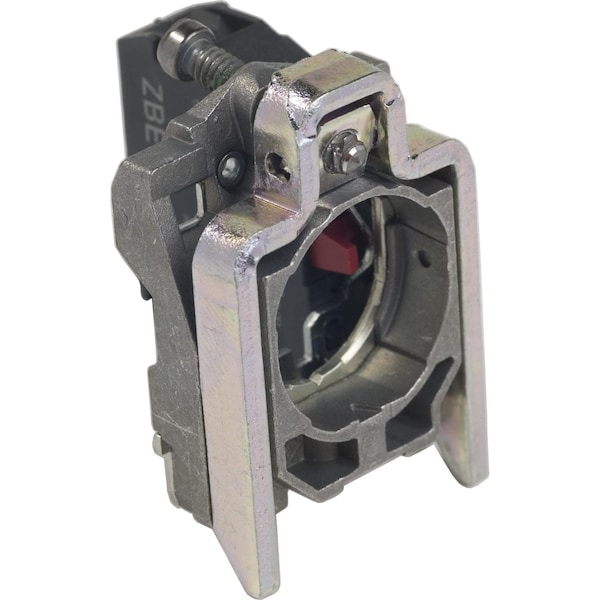

Ensamblaje de contacto de cuerpo completo, Harmony XB4, bloque de contacto individual con collar de fijación de cuerpo, terminal de resorte de abrazadera 1NC.
| Item | Contact W/Base 1N/C |
|---|---|
| Standards | EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1 |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Contact Block Type | single |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Fixing Collar Material | zamak |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Mechanical Durability | 5,000,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Contacts Material | silver alloy |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Contacts Usage | contacts |
| Terminals Description Iso N°1 | NC |
| Device Composition | fixing collar |
| Contacts Type And Composition | 1 NC |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Device Short Name | ZB4 |
| Contact Operation | slow-break |
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Head Type | Standard |
| Product Or Component Type | complete body/contact assembly |
| Cad Overall Height | 47 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Width | 30 mm |
| Electrical Durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Cad Overall Depth | 37 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Product Certifications | CSA || GL || UL || BV || DNV || LROS (Lloyds register of shipping) |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
