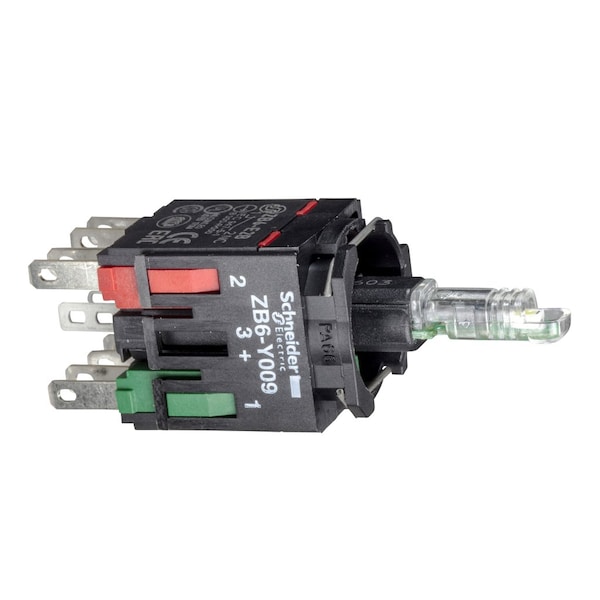

Cuerpo completo para botón de pulsación iluminado, Harmony XB6, bloque de luz amarilla, con cuerpo/collar de fijación, LED integrado, 12...24V, 1NA + 1NC.
| Item | Yellow light block with body/fixing coll |
|---|---|
| Standards | EN/IEC 60947-5-5, JIS C 852, UL 508, EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-1, CSA C22.2 No 14 |
| Width | 24 mm |
| Height | 18 mm |
| Connections - Terminals | Faston connector 2.8 x 0.5 mm |
| Electromagnetic Emission | class B IEC 55011 |
| Surge Withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6 |
| Light Source Colour | yellow |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Electrical Shock Protection Class | class II IEC 61140 |
| Contacts Type And Composition | 1 NO + 1 NC |
| Range of Product | Harmony XB6 |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70°C |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Current Consumption | 15 mA |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Short-Circuit Protection | 6 A cartridge fuse gG EN/IEC 60947-5-1 |
| Fixing Collar Material | plastic |
| Product or Component Type | complete body |
| Operating Force | 1.6 N NO changing electrical state, 2.5 N NC changing electrical state |
| Terminals Description Iso N°1 | NC |
| Device Short Name | ZB6 |
| Bulb Base | integral LED |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Supply Voltage Limits | 6-30 V AC, DC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
| Signalling Type | steady |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4 |
| Light Source | LED |
| Contact Operation | slow-break |
| Contacts Usage | standard |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300, 1.5 A 240 V, AC-15, B300, 0.1 A 250 V, DC-13, R300, 0.22 A 125 V, DC-13, R300 |
| Operating Travel | 1 mm NC changing electrical state), 2 mm NO changing electrical state), 4.3 mm total travel) |
| Contacts Material | silver alloy |
| Product Certifications | CCC || GOST || UL || CSA |
| Cad Overall Height | 18 mm |
| Cad Overall Width | 24 mm |
| Cad Overall Depth | 51 mm |
| Package Quantity | 1 |
