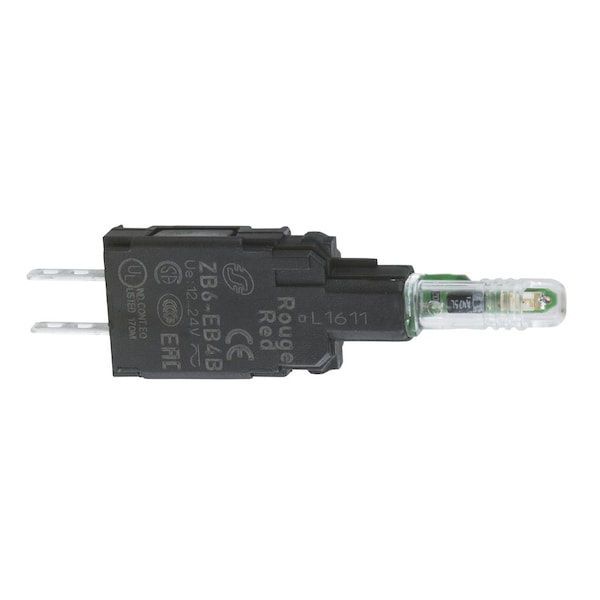

Cuerpo completo para luces piloto, Harmony XB6, bloque de luz verde, con cuerpo/collar de fijación, LED integrado, 230...240V CA.
| Item | Green light block with body/fixing colla |
|---|---|
| Standards | UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 4520 || JIS C 852 |
| [Us] Rated Supply Voltage | 230 to 240 V AC |
| Product Or Component Type | complete body |
| Light Block Supply | direct |
| Ambient Air Temperature For Operation | -25-70°C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Signalling Type | steady |
| Terminals Description Iso N°1 | PL |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Device Short Name | ZB6 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Bulb Base | integral LED |
| Protective Treatment | TC |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Cad Overall Height | 14 mm |
| Surge Withstand | 1 kV in contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5 |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Light Source | LED |
| Electromagnetic Emission | class B IEC 55011 |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Supply Voltage Limits | 195-264 V AC |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Operating Position | any position |
| Product Certifications | CCC || CSA || GOST || UL |
| Cad Overall Depth | 58 mm |
| Light Source Colour | green |
| Range of Product | Harmony XB6 |
| Package Quantity | 1 |
