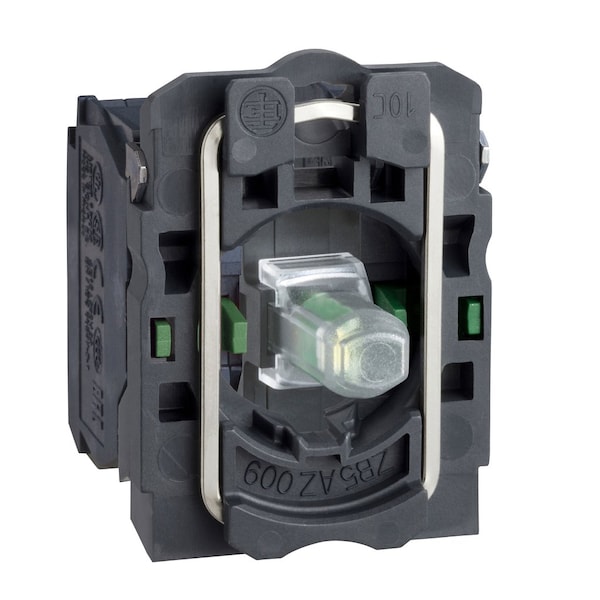

Ensamble completo de cuerpo/contacto y bloque de luz, Harmony XB5, XB4, con cuerpo/collar de fijación, LED universal, 230...240V, 2NO.
| Item | White light block with body/fixing colla |
|---|---|
| Width | 30 mm |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, JIS C8201-1 |
| Height | 42 mm |
| Mechanical Durability | 5,000,000 cycle |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Signalling Type | steady |
| Range of Product | Harmony XB5 |
| Protective Treatment | TH |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Supply Voltage Limits | 195-264 V AC |
| Operating Travel | 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -40-70°C |
| Current Consumption | 14 mA |
| Electromagnetic Emission | class B IEC 55011 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Terminals Description Iso N°1 | NO |
| Contacts Type And Composition | 2 NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Positive Opening | without |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| [Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Operating Torque | 0.05 N.m NO changing electrical state |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Bulb Base | integral LED |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Light Source Colour | white |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Contact Operation | slow-break |
| Operating Force | 2.3 N NO changing electrical state |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Contacts Material | silver alloy |
| Electrical Shock Protection Class | class II IEC 60536 |
| Light Block Supply | direct |
| Contacts Usage | standard |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Head Type | Standard |
| Device Short Name | ZB5 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Product or Component Type | complete body |
| Light Source | LED |
| Service Life | 100000 h at rated voltage and 25°C |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Fixing Collar Material | plastic |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Product Certifications | DNV || BV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA |
| Cad Overall Height | 42 mm |
| Cad Overall Width | 30 mm |
| Cad Overall Depth | 32 mm |
| Package Quantity | 1 |
