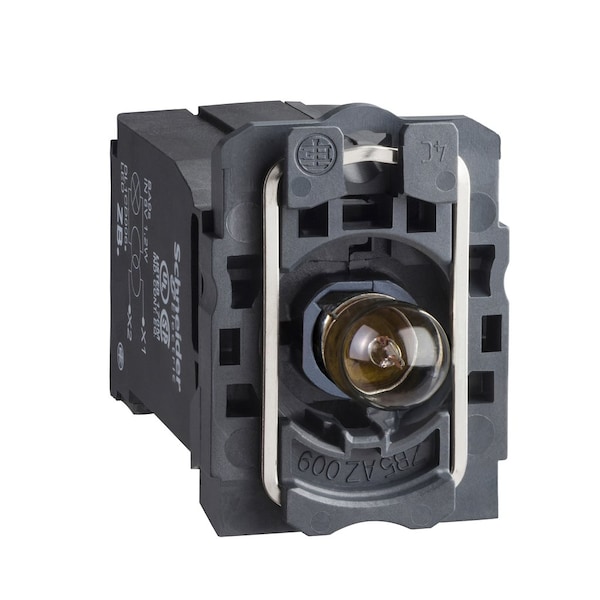

Conjunto completo de cuerpo/bloque de luz, Harmony XB5, XB4, luz, con cuerpo/collar de fijación, BA9s, bombilla incandescente, 400V CA.
| Item | Light block with body/fixing collar with |
|---|---|
| Standards | IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1, UL 508, JIS C8201-5-1, JIS C8201-1 |
| Width | 30 mm |
| Height | 42 mm |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Signalling Type | steady |
| Bulb Base | BA 9s |
| Product or Component Type | complete body/light block assembly |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Light Source | incandescent |
| Fixing Collar Material | plastic |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| [Us] Rated Supply Voltage | 400 V AC 50/60 Hz |
| Electrical Composition Code | P4, M9 |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Ambient Air Temperature For Operation | -40-55°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mounting of Block | front mounting |
| Electrical Shock Protection Class | class II IEC 60536 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Terminals Description Iso N°1 | PL |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Device Presentation | basic sub-assemblies |
| Range of Product | Harmony XB5 |
| Device Short Name | ZB5 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cad Overall Depth | 55 mm |
| Product Certifications | LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV |
| Cad Overall Width | 30 mm |
| Cad Overall Height | 42 mm |
| Package Quantity | 1 |
