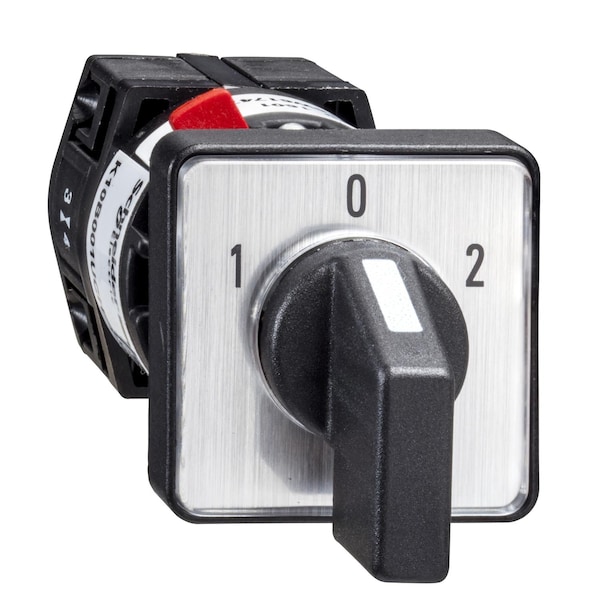

Interruptor de levas completo Harmony K1, K2 de Schneider Electric. Este interruptor cambiador de levas de 16mm o 22mm está fabricado en plástico, cuenta con 3 polos y posición 0 a 60 grados. Con capacidad de 10A y dimensiones de 30x30mm, marcado 1 0 2.
| Item | Cam changeover switch - 3-pole - 60 - 10 |
|---|---|
| Standards | CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1 |
| Presentation Of Legend | with metallic, 1 - 0 - 2 black |
| Cad Overall Width | 30 mm |
| Fixing Mode | Ø 16 or 22 mm hole |
| Contact Operation | slow-break |
| Switching Angle | 60 deg |
| Cam Switch Function | changeover switch |
| Cad Overall Depth | 100 mm |
| Rated Operational Power In W | 1800 W AC-23A, 220/240 V 3 phase || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase |
| Product Or Component Type | complete cam switch |
| Ambient Air Temperature For Operation | -20-55°C |
| Type Of Operator | handle |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Mechanical Durability | 1,000,000 cycle |
| Electrical Durability | 100,000,000 cycle |
| Product Certifications | cULus |
| Electrical Connection | captive screw clamp terminals 2 x 1.5 mm² |
| Rotary Handle Padlocking | without |
| Poles Description | 3 P |
| Switching Positions | right: 0° - 60° || left: 0° - 300° |
| Product Mounting | front mounting |
| Cad Overall Height | 30 mm |
| Rated Power In Hp | 1 hp 220/240 V AC, 3 phase || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phase || 0.75 hp 220/240 V AC, 1 phase |
| Electrical Shock Protection Class | class II IEC 60536 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| [Ie] Rated Operational Current Ac | 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15 |
| Ambient Air Temperature For Storage | -40-70°C |
| Component Name | K10 |
| [Ui] Rated Insulation Voltage | 440 V 3)IEC 60947-1 |
| Off Position | with Off position |
| Cam Switch Head Type | with front plate 30 x 30 mm |
| [Ie] Rated Operational Current Dc | 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive |
| Ip Degree Of Protection | contact block IP20 || operating head IP65 IEC 60529 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Protective Treatment | TC |
| Conventional Free Air Thermal Current | 10 A |
| Rated Operational Current AC | 10 A 400 V AC-1; 10 A 400 V AC-21A; 3 A 240 V AC-15; 6 A 120 V AC-15 |
| Rated Operational Current DC | 10 A 24 V resistive; 0.3 A 220 V resistive; 0.7 A 110 V resistive |
| Return | Without |
| Range of Product | Harmony K |
| Package Quantity | 1 |
