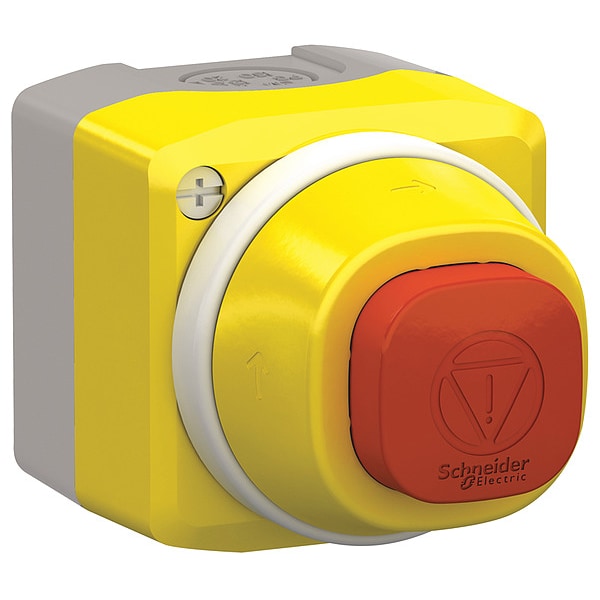

Estación de control completa, 22 mm, 1NA/2NC
| Action | Maintained |
|---|---|
| Size | 22 mm |
| NEMA Rating | 12, 13, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Contact Form | 1NO/2NC |
| Legend | Stop |
| Number of Operators | 1 |
| Contact Rating | 0.1A @ 600 V DC, 0.27A @ 250 V DC, 0.55A @ 125 V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC |
| Item | Control Station |
| Standards | CSA, UL Listed |
| Width | 2.68 in |
| Operator Color | Red |
| Lamp Module Voltage | 24V AC/DC |
| Depth | 3.78 in |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Series | Harmony |
| IP Rating | IP66, IP67, IP69, IP69K |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Enclosure Color | Yellow, Gray |
| Material | polycarbonate |
| Height | 2.68 in |
| Number of Pilot Lights | 1 |
| Enclosure Material | Plastic |
| Maintained Action Release | Twist |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 3.78 in |
| Hazardous Location Specification | Not Rated |
| Hub Style | Feed-Thru |
| Product Type | Control Station |
| NEMA Enclosure Rating | 4, 13, 4X, 1 |
| Selector Switch Number of Positions | Not Applicable |
| Pilot Light Color | Yellow |
| Number of Speeds | 1 |
| Operating Temperature - Minimum | -40 deg F |
| Mounting Orientation | Not Applicable |
| Overall Height | 2.68 in |
| Panel Cutout Diameter | 22 mm |
| Operator Configuration | Mushroom Head Push Button |
| Hub Size - Maximum | 9/16 in |
| Overall Width | 2.68 in |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Operator Profile | red square 32 mm |
| Ik Degree Of Protection | IK05 EN 50102 |
| Product Destination | for units |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Operating Travel | 1.5 mm NC changing electrical state) || 4.3 mm total travel) |
| Electrical Insulation Class | class II IEC 61140 |
| Reset | turn to release |
| Resistance To Electrostatic Discharge | 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Cable Entry | 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Control Station Application | emergency switching off function || emergency stop function |
| Contact Operation | slow-break |
| Colour Of Base Of Enclosure | light grey RAL 7035 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E |
| Product Or Component Type | control station |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Colour Of Cover | yellow RAL 1021 |
| Protective Treatment | TH |
| Contacts Material | silver alloy |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Control Station Composition | 1 mushroom head push-button, red 1 NO + 2 NC |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Device Short Name | XALK |
| Product Certifications | UL Listed || CSA |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1, IEC |
| Mechanical Durability | 300,000 cycle |
| Operators Description | red unmarked 1 NO + 2 NC |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operating Force | 44 N |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Reliability | Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Package Quantity | 1 |
