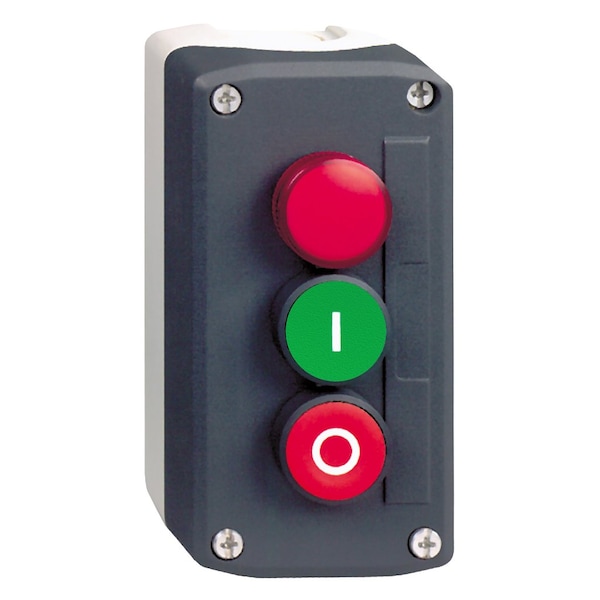

Estación de control completa, Harmony XALD, botones pulsadores de color gris oscuro verde/rojo con diámetro de 22 mm y luz piloto roja.
| Item | Dark grey station - green flush/red flus |
|---|---|
| Basic Material | polycarbonate |
| Type of Operator | 2 flush push-buttons - 1 central pilot light |
| NEMA Rating | NEMA 13 || NEMA 4X |
| Standards | UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1 |
| Contact Rating | slow-break |
| Housing Color | light grey RAL 7035 |
| Terminal Connection | screw clamp terminal |
| IP Rating | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Application | Start-Stop function |
| Voltage | 600 V, 120 V |
| Cable Entry | 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Lamp Type | integrated and protected LED |
| Material | Polycarbonate |
| Control Station Composition | 1 flush push-button, green 1 NO I, 1 flush push-button, red 1 NC O, 1 pilot light |
| Marking Location | marking on push-button |
| Contacts Material | Silver alloy |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Colour of Base of Enclosure | light grey RAL 7035 |
| Current Consumption | 14 mA |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| [Us] Rated Supply Voltage | 120 V AC |
| Range of Product | Harmony XALD |
| Signalling Type | steady |
| Light Source | integrated and protected LED |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Operators Description | green ''I'' 1 NO - red ''O'' 1 NC |
| Ip Degree of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Mechanical Durability | 10,000,000 cycle |
| Service Life | 100000 h at rated voltage and 25°C |
| Colour of Marking | black marking when white caps, white marking when green, red or black caps |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Overvoltage Category | class II IEC 60536 |
| Colour of Cover | dark grey RAL 7016 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Ik Degree of Protection | IK05 conforming to EN 50102 |
| Device Short Name | XALD |
| Operating Force | 3.5 N NC changing electrical state, 3.8 N NO changing electrical state |
| Product or Component Type | control station |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Electromagnetic Emission | class B IEC 55011 |
| Protective Treatment | TH |
| Nema Degree of Protection | NEMA 13, NEMA 4X |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Shape of Screw Head | cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Contact Operation | Slow-break |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Ambient Air Temperature For Operation | -40-70°C |
| Light Source Colour | red |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Control Station Application | Start-Stop function |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Operating Travel | 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Positive Opening | IEC, With EN 60947-5-1 appendix K |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 |
| Operator Profile | 2 flush push-buttons - 1 central pilot light |
| Package Quantity | 1 |
