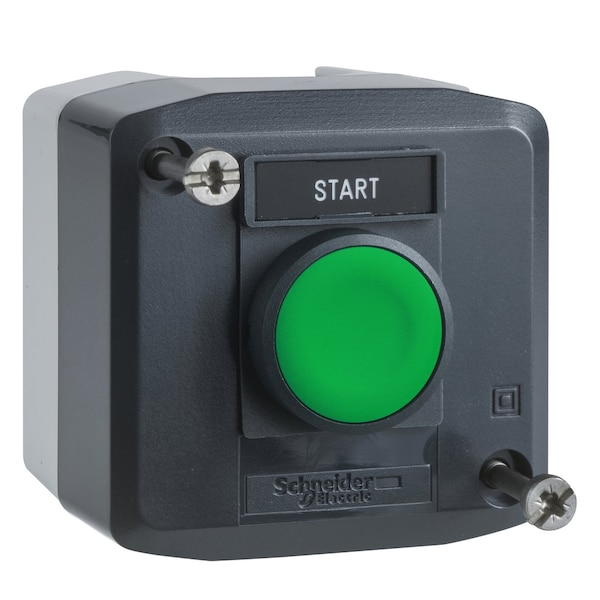

Estación de control completa, Harmony XALD, XALK, gris oscuro, 1 botón pulsador verde empotrado de 22mm con retorno por resorte, 1 NA Start.
| Item | Dark grey station - 1 green flush pushbu |
|---|---|
| Material | polycarbonate |
| Standards | JIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Marking Location | Marking on legend holder |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Colour of Base of Enclosure | light grey RAL 7035 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 |
| Operators Description | green ''START'' 1 NO |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Mechanical Durability | 10,000,000 cycle |
| Contact Operation | slow-break |
| Positive Opening | without |
| Cable Entry | 1 knock-out for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Colour of Cover | dark grey RAL 7016 |
| Contacts Material | silver alloy |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4 |
| Operating Force | 3.8 N NO changing electrical state |
| Overvoltage Category | class II IEC 60536 |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Range of Product | Harmony XALD |
| Ik Degree of Protection | IK03 EN 50102 |
| Device Short Name | XALD |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Product or Component Type | control station |
| Protective Treatment | TH |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Control Station Composition | 1 flush push-button, green 1 NO START |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Control Station Application | start function |
| Product Destination | for units |
| Operating Travel | 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Operator Profile | 1 flush push-button |
| Package Quantity | 1 |
