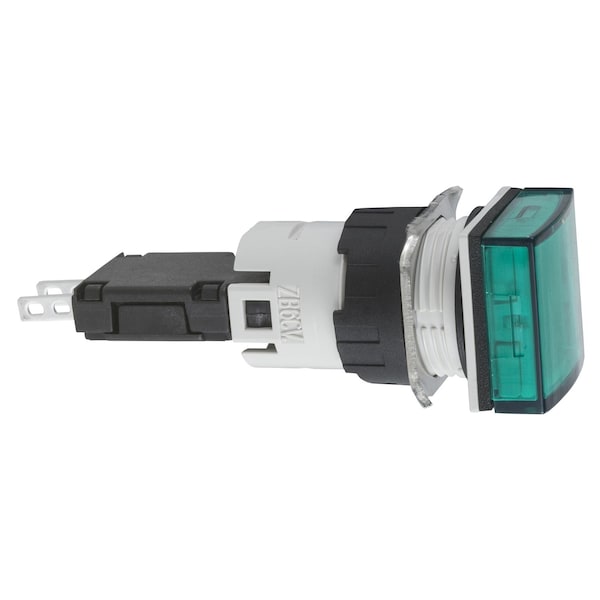

Piloto completo, Harmony XB6, cuadrado verde, de plástico, 16mm, LED integrado, 12...24V.
| Item | Push Button Light Module 240Vac 15A Xb6 |
|---|---|
| Voltage | 12 to 24V AC/DC |
| Color | Green |
| Lamp Type | LED |
| Shape | Square |
| Terminal Connection | Faston Connector |
| Contact Form | (+ -)PL |
| Bezel | Plastic |
| Standards | EN/IEC 60947-5-1; EN/IEC 60947-5-5; UL 508; JIS C 852; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-1; JIS C8201-1; CCC; UL; GOST; CSA |
| Length | 57 mm |
| IP Rating | IP65 |
| Height | 18 mm |
| NEMA Rating | 13, 4, 4X |
| Width | 18 mm |
| Type | Steady Signal |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Current Consumption | 15 mA |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Mounting Diameter | 16 mm |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6 |
| Device Short Name | XB6 |
| Supply Voltage Limits | 6-30 V AC/DC |
| Operating Position | Any position |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | Class B EN 55011 |
| Signalling Type | Steady |
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Protective Treatment | TC |
| Range of Product | Harmony XB6 |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Bulb Base | Integral LED |
| Surge Withstand | 1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5 |
| Light Block Supply | direct |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Nema Degree of Protection | NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94 |
| Product or Component Type | complete pilot light |
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
| Ip Degree of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Operation | -25-70°C |
| Package Quantity | 1 |
