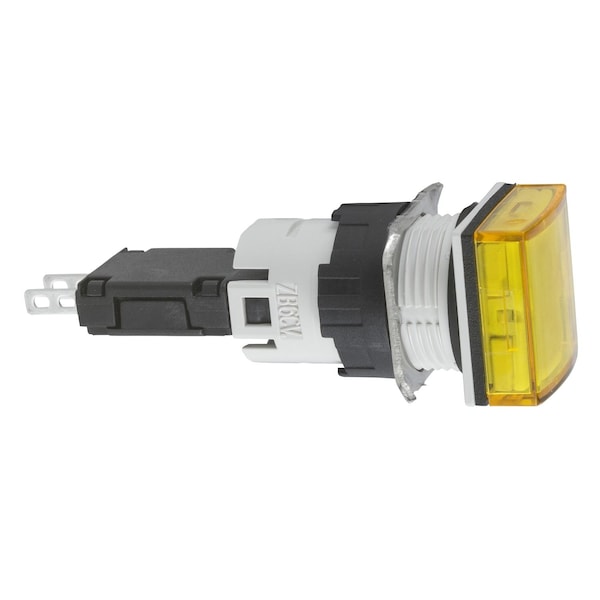

Piloto completo, Harmony XB6, cuadrado amarillo, plástico, 16mm, LED integrado, 12...24V
| Item | Push Button Light Module 240Vac 15A Xb6 |
|---|---|
| Voltage | 12 to 24V AC/DC |
| Color | Yellow |
| Lamp Type | LED |
| Shape | Square |
| Terminal Connection | Faston Connector |
| Contact Form | (+ -)PL |
| Bezel | Plastic |
| IP Rating | IP65 |
| NEMA Rating | 13, 4, 4X |
| Standards | EN/IEC 60947-5-1; EN/IEC 60947-5-5; UL 508; JIS C 852; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-1; JIS C8201-1; CCC; UL; GOST; CSA |
| Width | 18 mm |
| Height | 18 mm |
| Length | 57 mm |
| Depth | 2.24 in |
| Type | Steady Signal |
| NEMA Degree Of Protection | NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94 |
| Product Certifications | CSA; UL; GOST; CCC |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Mounting Diameter | 0.63 in |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Or Component Type | Pilot light |
| Protective Treatment | TC |
| Light Block Supply | Direct |
| Bulb Base | Integral LED |
| Rated Supply Voltage | 12 to 24 V AC/DC |
| Resistance To Electromagnetic Fields | 9.14 V/m |
| IP Degree Of Protection | IP65 IEC 60529 |
| Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Current Consumption | 15 mA |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Surge Withstand | 1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5 |
| Signalling Type | Steady |
| Vibration Resistance | +/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6 |
| Electromagnetic Emission | Class B EN 55011 |
| Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Supply Voltage Limits | 6 to 30 V AC/DC |
| Operating Position | Any position |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Device Short Name | XB6 |
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
| Range of Product | Harmony XB6 |
| Package Quantity | 1 |
