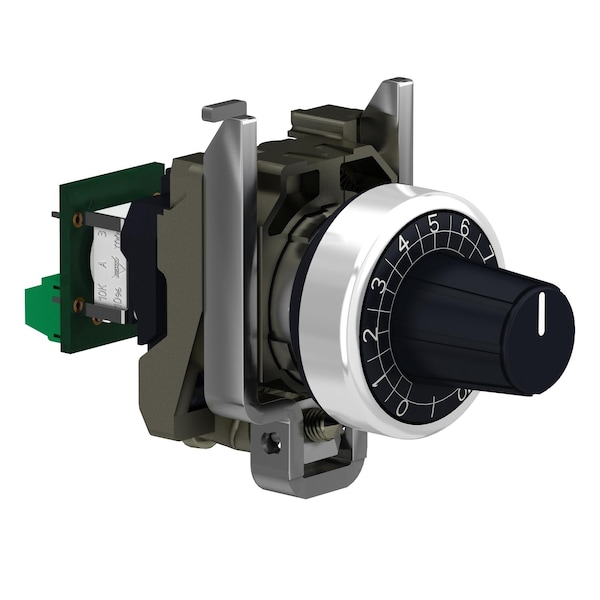

Potenciómetro completo, Harmony XB4, metal, 22mm, 1K
| Item | Head And Potentiometer,R1K |
|---|---|
| Standards | EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 |
| Material | cermet |
| Electrical Shock Protection Class | class II IEC 60536 |
| [Us] Rated Supply Voltage | <= 30 V AC || <= 42 V DC |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Or Component Type | potentiometer |
| Ambient Air Temperature For Storage | -40-70°C |
| Mechanical Durability | 50000 cycles |
| Product Compatibility | Ø 6 mm shaft |
| Head Type | Standard |
| Cad Overall Width | 30 mm |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Operator Profile | knurled knob, with white) |
| Bezel Material | chromium plated metal |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Cad Overall Depth | 82 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529 |
| Shape Of Signaling Unit Head | round |
| Group Of Product | potentiometer knurled knob |
| Potentiometer Characteristic | linear |
| Mounting Diameter | 22 mm |
| Device Presentation | complete product |
| Device Short Name | XB4 |
| Precision Of Internal Conversion Resistor | -0.1 |
| Colour Of Marking | white |
| Product Certifications | UL Listed || BV || CSA |
| Rated Power In W | 1 W 70°C |
| Ohmic Value | 1,000 ohms |
| Cad Overall Height | 47 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Protective Treatment | TH |
| Main Group | potentiometer |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
