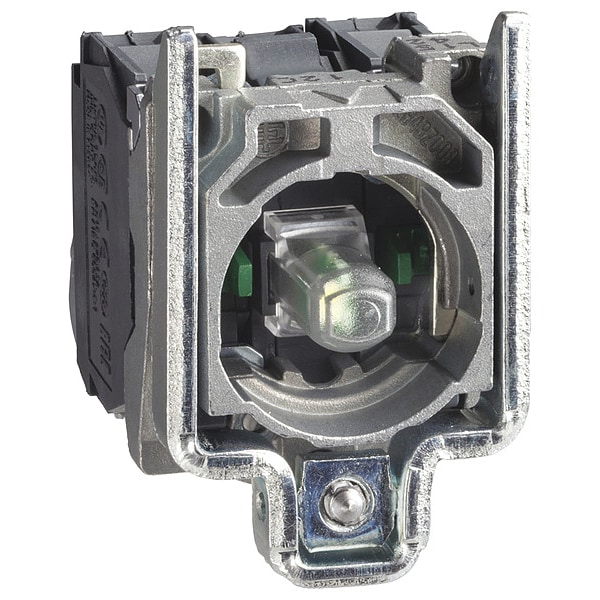

Ensamble de contacto y bloque de luz, 22 mm, verde.
| Size | 22 mm |
|---|---|
| Lamp Type | LED |
| Color | Green |
| Item | Light Block |
| Terminal Connection | Plug-in connector |
| Lamp Module Type | Full Voltage |
| IP Rating | Not Rated |
| Material of Construction | Metal |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Body Material | Metal |
| Voltage Rating - Maximum | 12 V DC |
| Compatible Panel Cutout Diameter | 22 mm |
| Overall Height | 1.85 in |
| Includes Bulb | Bulb Included |
| Overall Width | 1.18 in |
| NEMA Enclosure Rating | No Enclosure |
| Compatible with Series | XB4 |
| Terminal Connection Type | Plug-In |
| Compatible Operator | Selector Switch |
| Compatible with Brand | Schneider |
| Connections - Terminals | plug-in connector |
| Product Certifications | LROS (Lloyds register of shipping) || BV || DNV || GL || UL Listed || CSA |
| Contacts Material | silver alloy |
| Electrical Shock Protection Class | class I IEC 60536 |
| Current Consumption | 14 mA |
| Contacts Usage | standard |
| Electromagnetic Emission | class B IEC 55011 |
| Mechanical Durability | 5,000,000 cycle |
| Protective Treatment | TH |
| Operating Force | 2 N NC changing electrical state || 2.3 N NO changing electrical state |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Head Type | Standard |
| Product Or Component Type | complete body |
| Light Source Colour | green |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | ZB4 |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Cad Overall Height | 47 mm |
| Contacts Type And Composition | 2 NO |
| Ambient Air Temperature For Operation | -40-70°C |
| Bulb Base | integral LED |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Cad Overall Width | 30 mm |
| Light Block Supply | direct |
| Light Source | LED |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| [Us] Rated Supply Voltage | 12 V DC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Terminals Description Iso N°1 | NC |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Signalling Type | steady |
| Electrical Durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Fixing Collar Material | zamak |
| Contact Operation | slow-break |
| Package Quantity | 1 |
