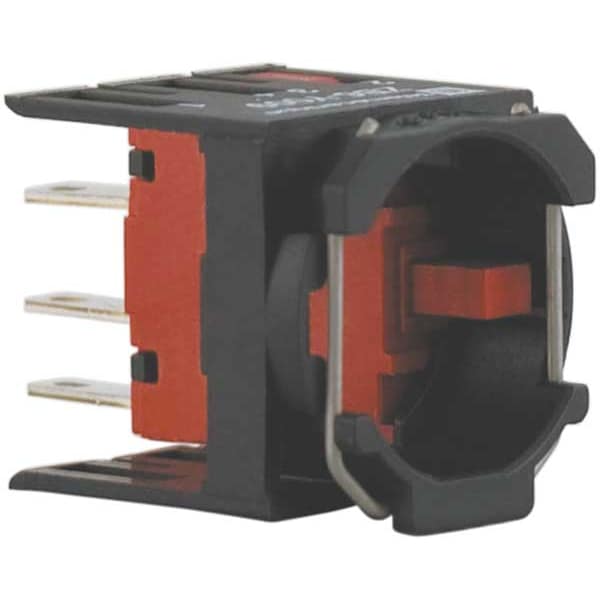

Bloque de contacto, 1NC Slow Break, 16mm
| Item | Contact Block |
|---|---|
| Contact Rating | 6 A @ 250 V AC |
| Size | 16 mm |
| For Use With | Schneider 16mm Push Buttons |
| Action | Momentary |
| Application | Operator |
| Contact Form | 1NC |
| Color | Black |
| NEMA Contact Rating Designation | R300, B300 |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C4520, JIS C852, UL 508 |
| Terminal Connection | Slip On or Faston Connector or Quick Connector |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Contacts Material | silver alloy |
| Product Or Component Type | complete body for push-buttons or selector switches |
| Device Short Name | ZB6 |
| Short-Circuit Protection | 6 A cartridge fuse gG EN/IEC 60947-5-1 |
| Fixing Collar Material | plastic |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Operating Force | 2.5 N NC changing electrical state |
| Ambient Air Temperature For Storage | -40-70°C |
| [Us] Rated Supply Voltage | <= 250 V |
| Contact Operation | slow-break |
| Product Certifications | GOST || UL || CCC || CSA |
| Protective Treatment | TC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Type And Composition | 1 NC |
| Terminals Description Iso N°1 | NC |
| Connections - Terminals | Faston connector || Faston connector 2.8 x 0.5 mm |
| Contacts Usage | standard |
| Operating Travel | 1 mm NC changing electrical state) || 4.3 mm total travel) |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Cad Overall Height | 18 mm |
| Cad Overall Width | 18 mm |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Cad Overall Depth | 40 mm |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Terminals Description Iso N°1 | NC |
| Includes Mounting Block | Mounting Block Included |
| Switch Action | Momentary |
| Terminal Connection Type | Connector |
| Connection Size | 16 mm |
| Manufacturer Warranty Length | 18 mo |
| Compatible Operator | Push Button |
| AC Contact Rating | 1.5 A @ 240 V, 3 A @ 120 V |
| Compatible with Series | ZB6 |
| DC Contact Rating | 0.1 A @ 250 V, 0.22 A @ 125 V |
| Package Quantity | 1 |
