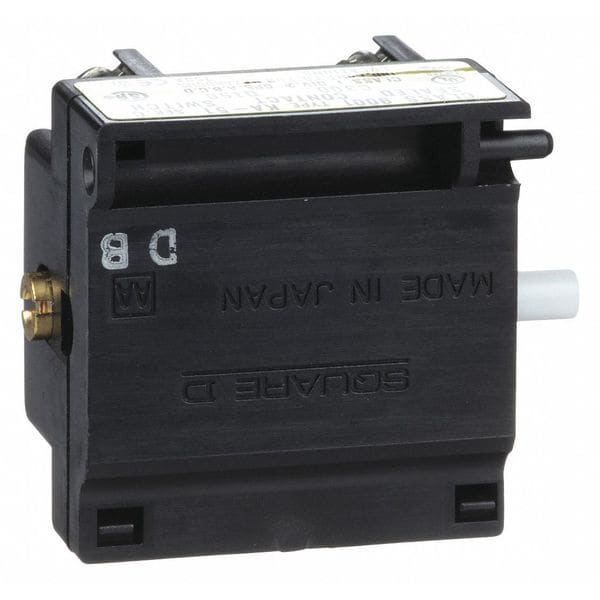

Bloque de contacto, 1NA + 1 NC, 30mm.
| Item | Contact Block |
|---|---|
| Contact Rating | 3 A @ 240 V AC |
| Size | 30 mm |
| For Use With | Schneider 9001K Series 30mm Operators |
| Action | Momentary |
| Application | Finger Safe Operator |
| Contact Form | 1NO/1NC |
| Color | Black |
| Safety Rating | Class II Conforming to IEC 61140 |
| NEMA Contact Rating Designation | C300, Q150 |
| Standards | UL 508 |
| Terminal Connection | Screw, Clamp |
| Product Certifications | NEMA || UL 508 |
| Ambient Air Temperature For Operation | -25-70°C |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| [Icm] Rated Short-Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 |
| Contact Operation | reed || hermetically sealed |
| Contacts Type And Composition | 1 C, O |
| [Us] Rated Supply Voltage | 240 V |
| Shape Of Screw Head | cross slotted |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | 9001K |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Contacts Usage | contacts |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Positive Opening | without |
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 |
| Connections - Terminals | screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² IEC 60947-1, screw-clamp terminals |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Protective Treatment | TC |
| Product Or Component Type | contact block |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Rated Short Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13 |
| Conventional Free Air Thermal Current | 10 A |
| Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA; 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| AC Contact Rating | 0.5 A @ 240 V, 1 A @ 120 V |
| Manufacturer Warranty Length | 18 mo |
| Includes Mounting Block | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Connection Size | 30 mm |
| Compatible Operator | Push Button |
| DC Contact Rating | 0.5 A @ 115 V |
| Switch Action | Momentary, Power Reed |
| Compatible with Series | 9001K, 9001SK |
| Package Quantity | 1 |
