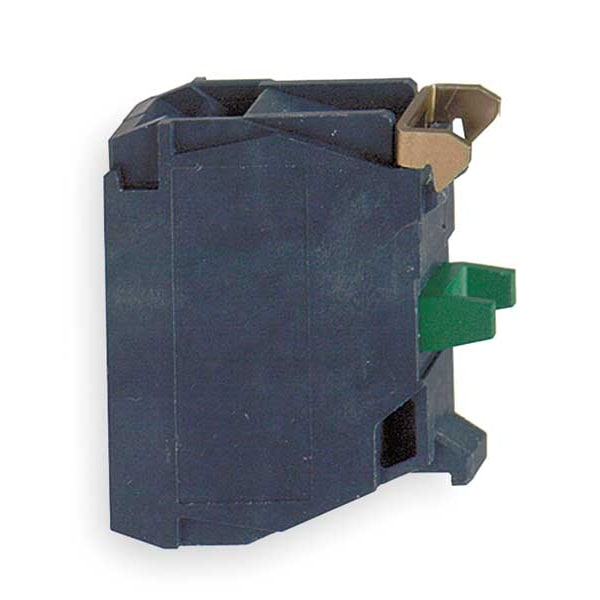

Bloque de contacto, 1 contacto normalmente abierto de cierre lento, 22mm
| Item | Contact Block |
|---|---|
| Contact Rating | 10 A @ 600 V AC |
| For Use With | Chrome, Plastic Operators (ZB4 or ZB5 Operators) |
| Size | 22 mm |
| Action | Momentary |
| Application | Operator |
| Contact Form | 1NO |
| Color | Black |
| Standards | CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Terminal Connection | Screw, Clamp |
| NEMA Contact Rating Designation | A600, Q600 |
| Positive Opening | without |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Contacts Usage | low power switching contacts |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Device Short Name | ZBE |
| Ambient Air Temperature For Operation | -40-70°C |
| Mechanical Durability | 10,000,000 cycle |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Mounting Of Block | front mounting |
| Electrical Composition Code | C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 ) |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Protective Treatment | TH |
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Product Certifications | CCC || DNV || GL || UL || CSA || LROS (Lloyds register of shipping) || BV || GOST |
| Contacts Material | gold flashed contacts |
| Contact Operation | slow-break |
| Ambient Air Temperature For Storage | -40-70°C |
| Contacts Type And Composition | 1 NO |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Contact Block Type | single |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Operating Force | 2.3 N NO changing electrical state |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Product Or Component Type | contact block |
| Shape Of Screw Head | cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Compatible with Series | ZB4, ZB5 |
| Manufacturer Warranty Length | 18 mo |
| Includes Mounting Block | Mounting Block Included |
| Compatible Operator | Push Button |
| Terminal Connection Type | Screw Clamp Terminals |
| Switch Action | Momentary |
| AC Contact Rating | 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Connection Size | 22 mm |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Package Quantity | 1 |
