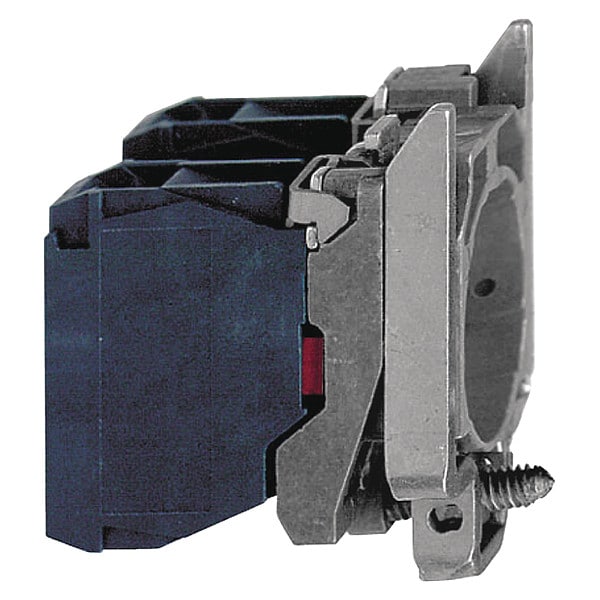

Bloque de contacto, negro, 2NC, 22 mm, ZB4
| Item | Contact Block |
|---|---|
| Contact Rating | @ 250 V AC |
| For Use With | Flat Surface of Enclosure Type 4, 4X, 12 and 13 |
| Size | 22 mm |
| Application | General Purpose |
| Contact Form | 2NC |
| Color | Black |
| Terminal Connection | Faston Connector |
| Standards | CSA C22.2 No.14, E/IEC 60947-1, E/IEC 60947-5-4, E/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Safety Rating | CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| NEMA Contact Rating Designation | A600, Q600 |
| Compatible with Series | ZB4 |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Terminal Connection Type | Faston Connector |
| Manufacturer Warranty Length | 18 mo |
| Switch Action | Momentary |
| Compatible Operator | Push Button |
| AC Contact Rating | 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Includes Mounting Block | Mounting Block Included |
| Connection Size | 22 mm |
| Contact Block Type | single |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Terminals Description Iso N°1 | NC |
| Contacts Material | silver alloy |
| Cad Overall Depth | 37 mm |
| Protective Treatment | TH |
| Contacts Usage | contacts |
| Device Composition | fixing collar |
| Mechanical Durability | 5,000,000 cycle |
| Electrical Durability | 10000000 cycles |
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Connections - Terminals | Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Fixing Collar Material | zamak |
| Cad Overall Height | 47 mm |
| Product Certifications | CSA || GL || LROS (Lloyds register of shipping) || BV || UL || DNV |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Operating Travel | 1.5 mm NC changing electrical state) || 4.3 mm total travel) |
| Head Type | Standard |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Cad Overall Width | 30 mm |
| Device Short Name | ZB4 |
| Contacts Type And Composition | 2 NC |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Contact Operation | slow-break |
| Product Or Component Type | complete body/contact assembly |
| Package Quantity | 1 |
