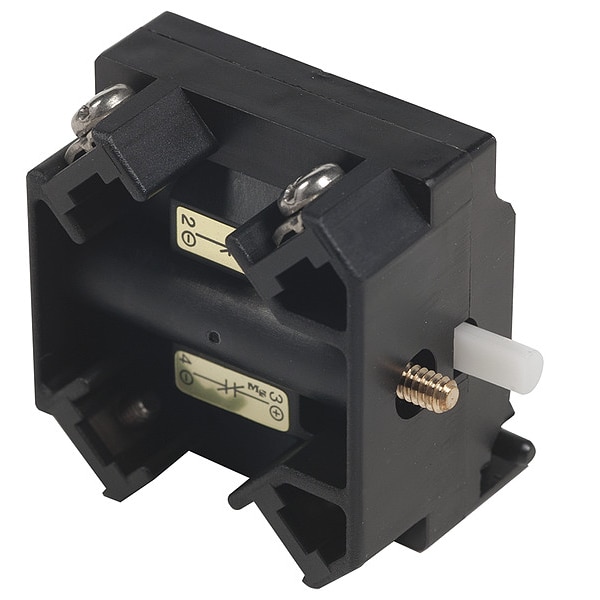

Bloque de contacto, negro, 2NC, 30 mm.
| Item | Contact Block |
|---|---|
| Size | 30 mm |
| Contact Form | 2NC |
| Color | Black |
| Safety Rating | CE, CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR |
| Standards | CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| NEMA Contact Rating Designation | C300, Q150 |
| Contact Operation | reed || hermetically sealed |
| Contacts Type And Composition | 2 NC |
| [Us] Rated Supply Voltage | 240 V |
| Product Or Component Type | contact block |
| Device Short Name | K |
| Connections - Terminals | screw-clamp terminals |
| Product Certifications | UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE |
| Short-Circuit Protection | 3 A fingersafe |
| AC Contact Rating | 0.5 A @ 240 V, 1 A @ 120 V |
| Compatible with Series | 9001K, 9001SK |
| Compatible Operator | Push Button |
| Includes Mounting Block | Not Applicable |
| Connection Size | 30 mm |
| DC Contact Rating | 0.5 A @ 115 V |
| Manufacturer Warranty Length | 18 mo |
| Terminal Connection Type | Screw Clamp Terminals |
| Switch Action | Momentary, Power Reed |
| Package Quantity | 1 |
