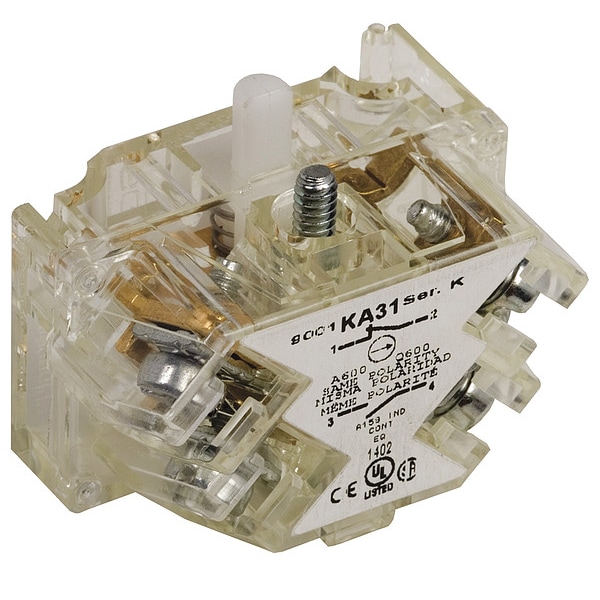

Bloque de contacto, transparente, SPDT, 30 mm
| Item | Contact Block |
|---|---|
| Contact Rating | 10 A @ 600 V AC |
| Size | 30 mm |
| Application | Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment |
| Contact Form | SPDT |
| Color | Clear |
| Safety Rating | CE, CSA LR 25490 class 3211 03, UL listed E42259 CCN NKCR |
| Standards | CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| NEMA Contact Rating Designation | A600, Q600 |
| Short-Circuit Protection | 5 A fingersafe |
| Contact Operation | positive opening |
| Connections - Terminals | screw-clamp terminals |
| [Us] Rated Supply Voltage | 0 to 600 V |
| Contacts Type And Composition | 1 C, O |
| Device Short Name | K |
| Product Certifications | UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE |
| Contacts Material | gold flashed contacts |
| Product Or Component Type | contact block |
| Compatible Operator | Push Button |
| Terminal Connection Type | Screw Clamp Terminals |
| Includes Mounting Block | Not Applicable |
| Compatible with Series | 9001K, 9001SK |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Switch Action | Momentary |
| AC Contact Rating | 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Manufacturer Warranty Length | 18 mo |
| Connection Size | 30 mm |
| Package Quantity | 1 |
