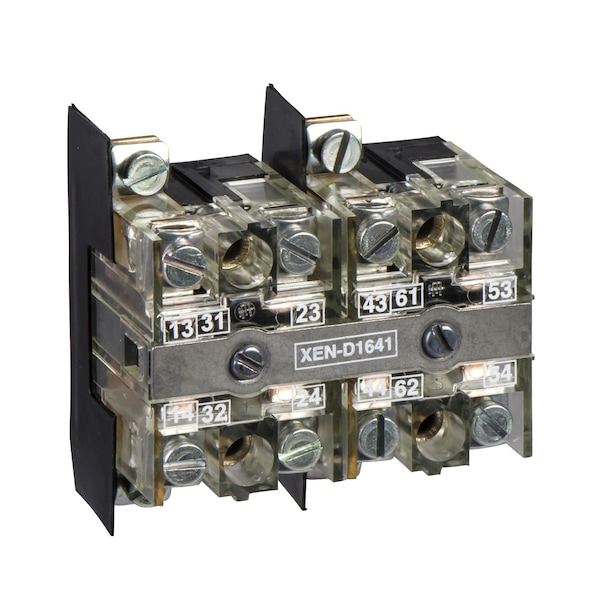

Bloque de contacto, Harmony XAC, doble contacto, 40mm, 2 retorno por resorte, 2 velocidades, montaje frontal, 1 C/O + 1 NO.
| Item | Pendant Station Contact 240Vac 3A Xac |
|---|---|
| Type of Operator | 2 spring return |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, EN 60947-5-1 |
| Electrical Circuit Type | control circuit |
| Terminals Description Iso N°1 | B, NO_CL, OF |
| Mechanical Interlocking | with mechanical interlocking |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Operation | staggered |
| Terminals Description Iso N°2 | B, (53-54)NO_CL, (43-44-61-62)OF |
| Rated Operational Power In Va | 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive, 210 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive, 640 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive, 680 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Contact Block Application | 2-speed |
| Mounting of Block | front mounting |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Contacts Type And Composition | 1 C, O + 1 NO |
| Terminal Identifier | NC, NO |
| Range of Product | Harmony XAC |
| Product or Component Type | contact block |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Maximum Resistance Across Terminals | 25 MOhm |
| Mechanical Durability | 1,000,000 cycle |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
| Product Compatibility | XACB, XACM |
| Rated Operational Power In W | 31 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 35 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Component Name | XEND |
| Ambient Air Temperature For Operation | -25-70°C |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Contact Block Type | double |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Package Quantity | 1 |
