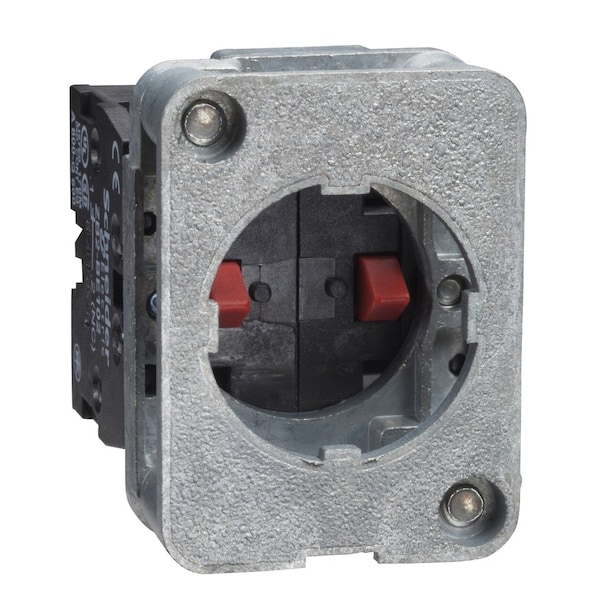

Bloque de contacto, Harmony XAC, contacto único, retorno por resorte, montaje frontal, centros de fijación horizontal de 40mm/vertical de 30mm, 1 contacto normalmente abierto.
| Type of Operator | spring return |
|---|---|
| Item | Pendant Station Contact |
| Standards | CSA C22.2 No 14, EN 60947-5-1, IEC 60947-5-1 |
| Terminal Identifier | NC, NO |
| Product Compatibility | ZA2B... head, XACA |
| Range of Product | Harmony XAC |
| Horizontal Fixing Centres | 40 mm |
| Rated Operational Power In Va | 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive, 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive, 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive, 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive |
| Contact Block Type | single |
| Electrical Circuit Type | control circuit |
| Component Name | XACS |
| Contacts Type And Composition | 1 NO |
| Product or Component Type | block |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Mechanical Interlocking | without mechanical interlock |
| Mechanical Durability | 1,000,000 cycle |
| Terminals Description Iso N°1 | NO |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Vertical Fixing Centres | 30 mm |
| Maximum Resistance Across Terminals | 25 MOhm |
| Contact Operation | slow-break |
| Rated Operational Power In W | 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Mounting of Block | front mounting |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Ambient Air Temperature For Operation | -25-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Package Quantity | 1 |
