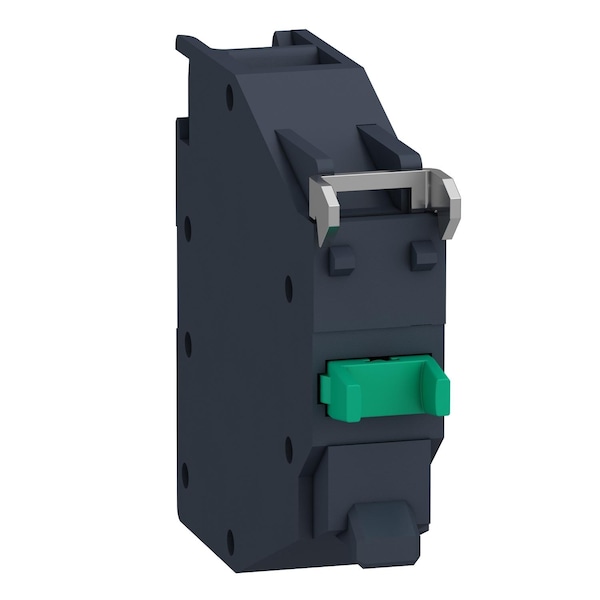

Bloque de contacto, Harmony XB4 - ATEX D, contacto único, contacto protegido contra gas, bornes de sujeción por tornillo, 1NA.
| Item | Contact Block |
|---|---|
| Contact Form | 1 NO |
| Terminal Connection | Screw Clamp |
| Safety Rating | EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01 |
| NEMA Contact Rating Designation | A600/Q300 |
| Application | Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines |
| Standards | EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01 |
| Protective Treatment | TH |
| [Ui] Rated Insulation Voltage | 415 V |
| Operating Travel | 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel) |
| Contacts Type And Composition | 1 NO |
| Connections - Terminals | screw clamp terminals, 2 x 1.5 mm² without cable end || screw clamp terminals, 1 x 2.5 mm² with cable end |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Ambient Air Temperature For Operation | -50-75°C |
| Mounting Of Block | front mounting |
| Contact Block Type | single |
| Operating Force | 3.962 N |
| Contacts Usage | gas protected contact |
| Device Short Name | ZBE |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Contact Operation | standard |
| Ambient Air Temperature For Storage | -50-70°C |
| Cad Overall Height | 10 mm |
| Product Certifications | cULus |
| Cad Overall Width | 38 mm |
| Marking | Ex db eb IIC Gb |
| Mechanical Durability | 1,000,000 cycle |
| Product Or Component Type | contact block |
| Cad Overall Depth | 42.4 mm |
| [Ie] Rated Operational Current | 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1 |
| Environmental Characteristic | hazardous location class I division 2 |
| Positive Opening | without |
| Rated Operational Current | 1.9 A 380 V, AC, A600 IEC 60947-5-1; 3 A 240 V, AC, A600 IEC 60947-5-1; 6 A 120 V, AC, A600 IEC 60947-5-1; 0.27 A 250 V, DC, Q300 IEC 60947-5-1; 0.55 A 125 V, DC, Q300 IEC 60947-5-1; 2.87 A 24 V, DC, Q300 IEC 60947-5-1 |
| Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
