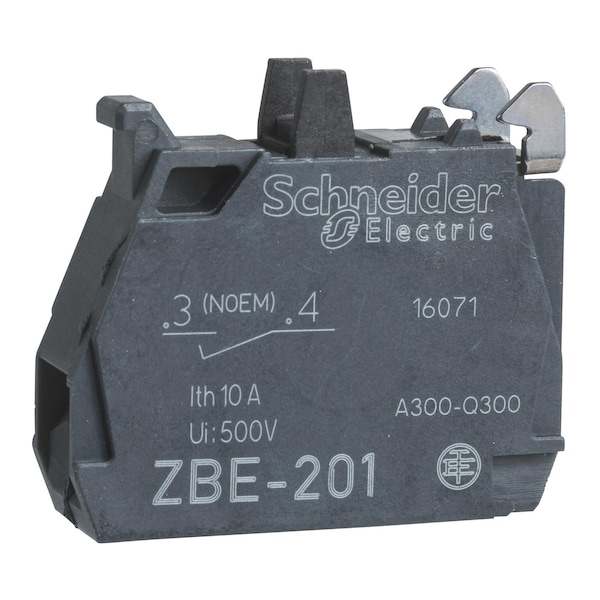

Bloque de contacto, Harmony XB4, Harmony XB5, contacto simple, para cabeza de 22mm, contactos estándar, terminales de tornillo para terminal de ojal, 1NA.
| Item | Contact Blocks |
|---|---|
| Standards | JIS C8201-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, JIS C8201-1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Contacts Usage | contacts |
| Contact Operation | slow-break |
| Contacts Material | silver alloy |
| Protective Treatment | TH |
| Connections - Terminals | screw terminals for lug |
| Mounting of Block | front mounting |
| Electrical Composition Code | C1 9 ), C2 7 ), C3 6 ), C4 4 ), C5 5 ), C6 3 ), C7 4 ), C8 2 ), C9 3 ), C12 6 ), M1 6 ), M2 4 ), M3 4 ), M5 2 ), M6 2 ), M7 6 ), M8 4 ), M9 2 ), SF1 3 ), SF2 2 ), MF1 2 ), MF2 2 ), C10 2 ), M4 2 ), C13 1 ) |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Block Type | single |
| Positive Opening | without |
| Device Short Name | ZBE |
| Range of Product | Harmony, Harmony XB4 XB5 |
| Operating Travel | 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Ip Degree of Protection | IP20 IEC 60529 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Contacts Type And Composition | 1 NO |
| Operating Force | 2.3 N NO changing electrical state |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product or Component Type | contact block |
| Product Certifications | UL || BV || DNV || LROS (Lloyds register of shipping) || GL || CSA |
| Package Quantity | 1 |
