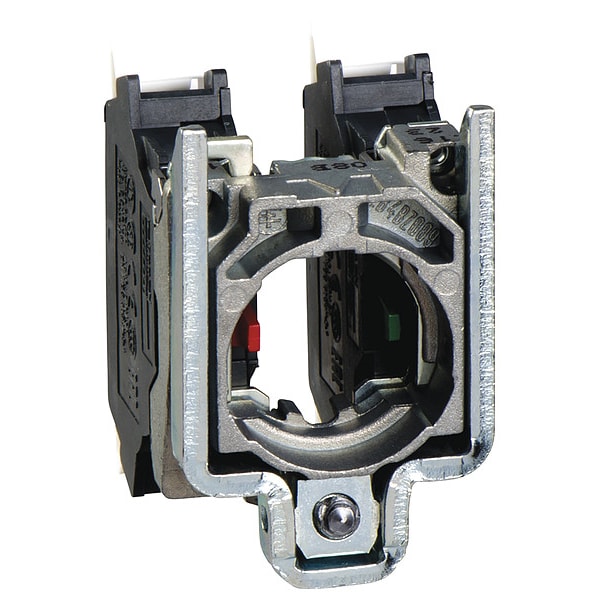

Bloque de contacto, Negro, 1NA/1NC, 22mm, ZB4
| Item | Contact Block |
|---|---|
| Size | 22 mm |
| Application | General Purpose |
| Contact Form | 1NO/1NC |
| Color | Black |
| Safety Rating | IEC 60947 |
| NEMA Contact Rating Designation | A600, Q600 |
| Terminal Connection | Spring Clamp |
| Compatible with Series | ZB4 |
| AC Contact Rating | 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Switch Action | Momentary |
| Compatible Operator | Push Button |
| Includes Mounting Block | Mounting Block Included |
| Connection Size | 22 mm |
| Terminal Connection Type | Screw Clamp Terminals |
| Manufacturer Warranty Length | 18 mo |
| [Ie] Rated Operational Current | 10 A, Q600 || 10 A, A600 |
| Device Composition | fixing collar |
| Electrical Durability | 10000000 cycles, 10 A |
| Ambient Air Temperature For Operation | -40-70°C |
| Fixing Collar Material | zamak |
| Device Short Name | ZB4 |
| Contact Block Type | single |
| Contact Operation | slow-break |
| Product Or Component Type | complete body/contact assembly |
| Contacts Type And Composition | 1 NO + 1 NC |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Width | 30 mm |
| Contacts Material | silver alloy |
| Mechanical Durability | 10,000,000 cycle |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Device Presentation | basic sub-assemblies |
| Head Type | Standard |
| Package Quantity | 1 |
