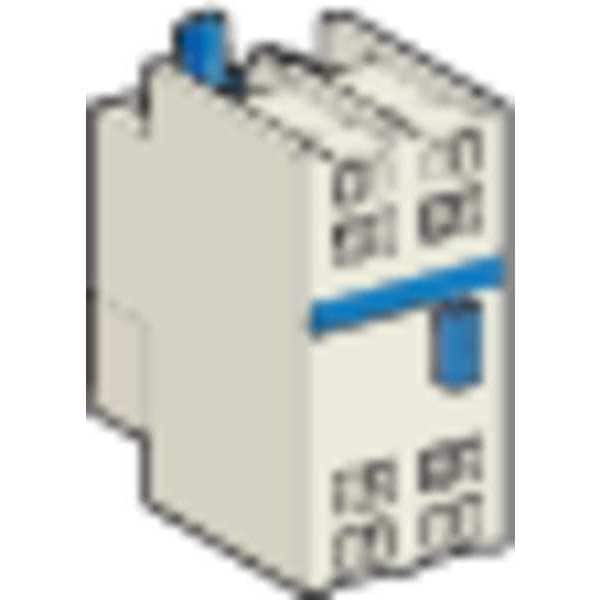

Bloque de contacto auxiliar para contactor IEC
| Item | Contactor Auxiliary Contact Block Iec |
|---|---|
| Standards | EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN 50012 |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
| Product Or Component Type | auxiliary contact block |
| Ambient Air Temperature For Storage | -60-80°C |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Operating Altitude | 9,842.52 ft |
| Product Name | TeSys Deca |
| Mounting Location | front |
| Minimum Switching Voltage | 17 V |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA |
| Connections - Terminals | spring terminals 2 2.5-2.5 mm²flexible without cable end || spring terminals 2 2.5-2.5 mm²rigid |
| Protection Type | gG fuse 10 A |
| Irms Rated Making Capacity | 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1 |
| [Ie] Rated Operational Current | 6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13 |
| Depth | 42 mm |
| Device Short Name | LADN |
| Range Compatibility | TeSys D CAD || TeSys D LC1D || TeSys Deca CAD || TeSys Deca LC1D |
| [Ith] Conventional Free Air Thermal Current | 10 A 60°C |
| Pole Contact Composition | 2 NO |
| Product Certifications | CB || UL || CSA || CCC || EAC || UKCA |
| Auxiliary Contacts Operation | instantaneous |
| Permissible Short-Time Rating | 100 A 60°C 1 s || 120 A 60°C 500 ms || 140 A 60°C 100 ms |
| Insulation Resistance | > 10 MOhm |
| Ambient Air Temperature For Operation | -5-60°C |
| Range | TeSys || TeSys Deca |
| Mechanical Durability | 30 Mcycles |
| Minimum Switching Current | 5 mA |
| Color | Dark Grey |
| Height | 48 mm |
| Width | 26 mm |
| Protective Treatment | TH IEC 60068 |
| Environmental Characteristic | normal environment |
| Non-Overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact |
| Rated Insulation Voltage | 690 V IEC 60947-5-1; 600 V UL; 600 V CSA |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) |
| Rated Operational Voltage | 690 V AC 25 to 400 Hz |
| Rated Operational Current | 6 A x 120 V AC x 15, 1.04 A x 690 V AC x 15, 0.55 A x 125 V DC x 13, 0.1 A x 600 V DC x 13 |
| Package Quantity | 1 |
