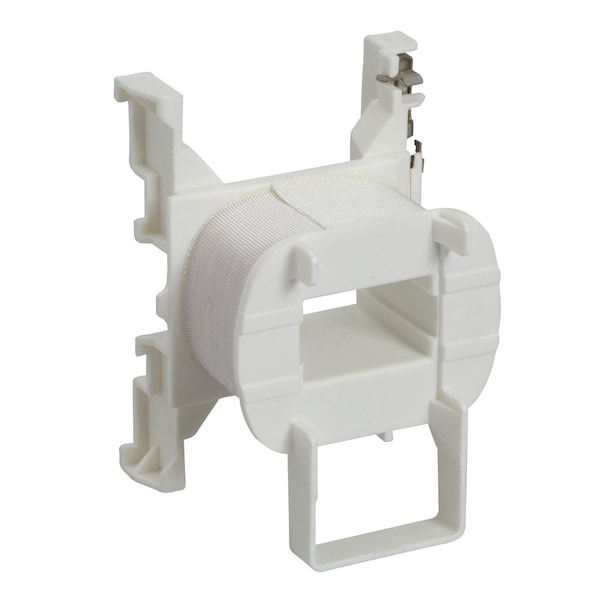

Bobina del contactor 220/230V CA IEC
| Item | Replacement Coil |
|---|---|
| Range | TeSys |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C) |
| Average Resistance | 515.4 Ohm 20 °C |
| Inductance Of Closed Circuit | 18 H |
| [Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | -5-60 °C |
| Mechanical Durability | 9 Mcycles |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C) |
| Product Compatibility | CAD || LC1D09 to D38 || LC1DT20 to DT40 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Device Short Name | LXD1 |
| Control Circuit Type | AC 50/60 Hz |
| Coil Technology | without built-in suppressor module |
| Product Or Component Type | contactor coil |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C) |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Package Quantity | 1 |
