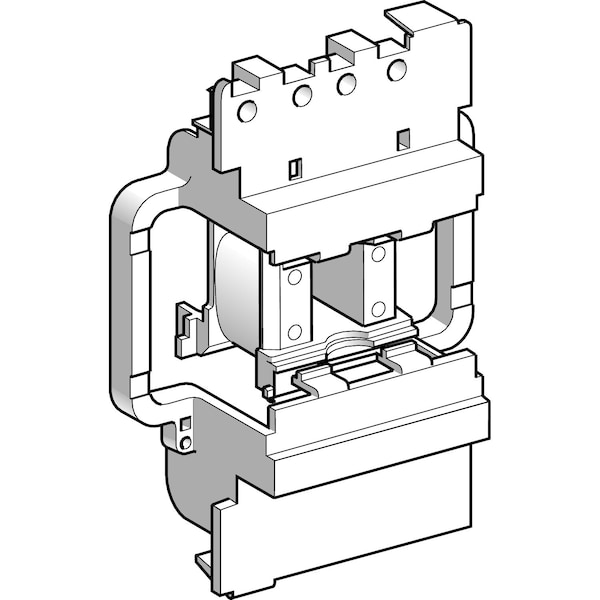

Bobina de contactor, TeSys Deca, LX1D8, 380V AC 50/60Hz para contactores de 115 y 150A.
| Item | Contactor Coil 380V Ac Iec |
|---|---|
| Average Resistance | 21011 Ohm 20°C |
| Inrush Power In Va | 280-350 VA 60 Hz cos phi 0.9 (at 20°C), 280-350 VA 50 Hz cos phi 0.9 (at 20°C) |
| Ambient Air Temperature For Operation | -5-60°C |
| Product Compatibility | LC1D115, LC1D150 |
| [Uc] Control Circuit Voltage | 380 V AC 50/60 Hz |
| Inductance of Closed Circuit | 482.42 H |
| Control Circuit Voltage Limits | drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55°C), operational: 0.8...1.15 Uc at 50/60 Hz (at <55°C) |
| Coil Technology | without built-in suppressor module |
| Mechanical Durability | 8 Mcycles |
| Hold-In Power Consumption In Va | 2-18 VA 60 Hz cos phi 0.9 (at 20°C), 2-18 VA 50 Hz cos phi 0.9 (at 20°C) |
| Range | TeSys |
| Device Short Name | LX1D8 |
| Control Circuit Type | AC 50/60 Hz |
| Heat Dissipation | 3-4.5 W 50/60 Hz |
| Maximum Operating Rate | 1200 cyc/h 60°C |
| Product or Component Type | contactor coil |
| Package Quantity | 1 |
