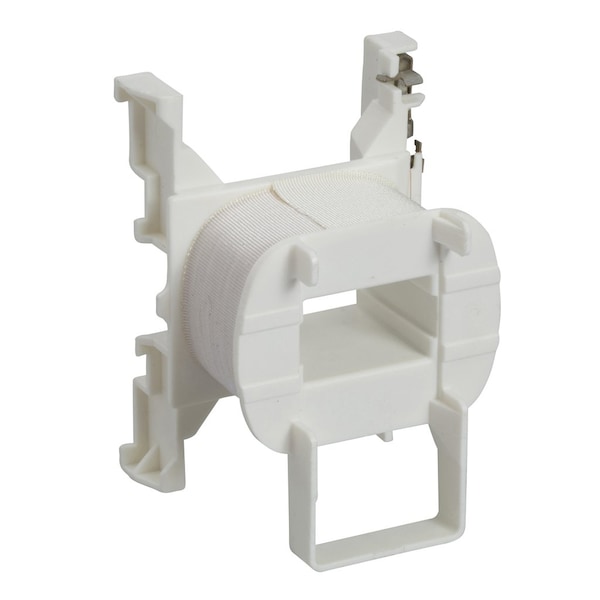

Bobina de contactor, TeSys Deca, LXD1, 600 V CA 50/60Hz para contactor de 9...38A.
| Item | Contactor Coil 600V Ac Iec |
|---|---|
| Control Circuit Type | AC 50/60 Hz |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Coil Technology | without built-in suppressor module |
| [Uc] Control Circuit Voltage | 600 V AC 50/60 Hz |
| Product Compatibility | LC1D09 to D38 || CAD || LC1DT20 to DT40 |
| Mechanical Durability | 15 Mcycles |
| Range | TeSys |
| Ambient Air Temperature For Operation | -5-60 °C |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C) |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C) |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Average Resistance | 3810 Ohm 20 °C |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C) |
| Inductance Of Closed Circuit | 136 H |
| Product Or Component Type | contactor coil |
| Device Short Name | LXD1 |
| Pvc Free | Yes |
| Package Quantity | 1 |
