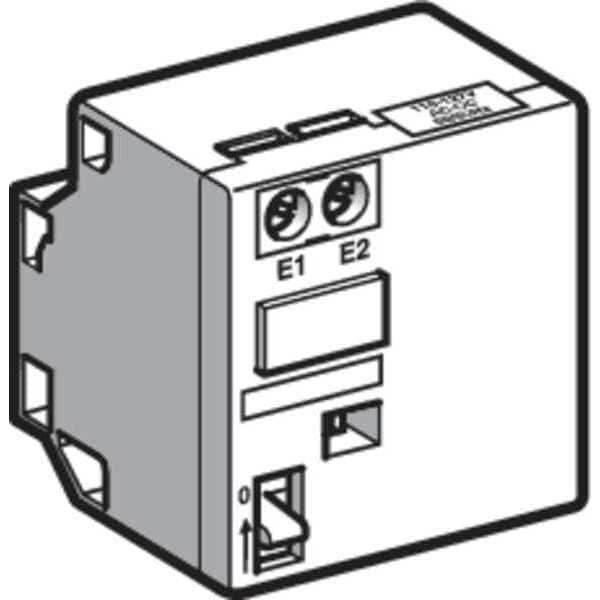

Bloque de contacto de mecanismo de cierre para contactor IEC.
| Item | Contactor Mech Latch Contact Block Iec |
|---|---|
| Power Required In Va | 25 AC |
| Range | TeSys |
| Mounting Location | side |
| Ambient Air Temperature For Operation | -25-55°C |
| Ambient Air Temperature For Storage | -40-80°C |
| Product Compatibility | LC1D09...D38 AC/DC || LC1DT20...DT40 AC/DC || LC1D40A...D80A 3 phase AC/DC || LC1DT60A 3 phases + neutral AC/DC || LC1DT80A 3 phases + neutral AC/DC |
| Protective Treatment | TH IEC 60068 |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1 |
| Power Required In W | 30 W DC |
| Product Or Component Type | mechanical latch block |
| Ip Degree Of Protection | IP2XVDE 0106 |
| [Uc] Control Circuit Voltage | 24 V DC || 24 V AC 50/60 Hz |
| Product Certifications | UL || CSA |
| Tripping Control | manual || electrical |
| On-Load Factor | 0.1 |
| Maximum Operating Rate | 1200 cyc/h |
| Mechanical Durability | 500000 cycles |
| Control Circuit Voltage | 24 V DC; 24 V AC 50/60 Hz |
| Package Quantity | 1 |
