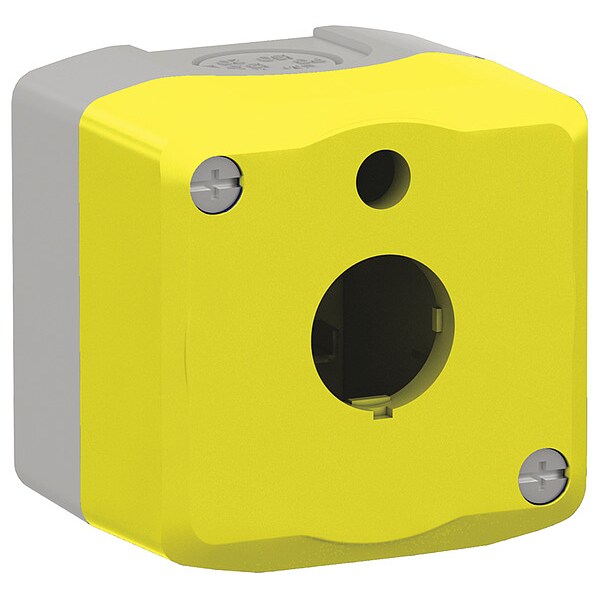

Caja de control para estación, 22mm, 1 orificio, fabricada en plástico. Ideal para el montaje y protección de elementos de control eléctrico.
| Item | Control Station Enclosure |
|---|---|
| Number of Columns | 1 |
| Material | Polycarbonate |
| Dimensions | 2.68 in H x 2.68 in W x 2.09 in D |
| NEMA Rating | 13, 4, 4X |
| Cable Entry | 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Height | 2.68 in |
| Width | 2.68 in |
| Depth | 2.09 in |
| Color | Yellow |
| For Use With | Illuminated E-Stop |
| Type | Control Station |
| Standards | RoHS |
| Mounting Style | Front Mounting, Rear Mounting |
| Overall Height | 2-11/16 in |
| Overall Width | 2-11/16 in |
| Compatible with Series | XB5 |
| Panel Cutout Diameter | 22 mm |
| NEMA Enclosure Rating | 13, 4, 4X |
| Overall Depth | 2-1/16 in |
| Compatible Conduit Size - Maximum | 14 mm |
| Electrical Composition Code | SR1 || SF1 || MR1 || MF1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Width | 68 mm |
| Protective Treatment | TH |
| Cad Overall Height | 68 mm |
| Mounting Of Block | front mounting || rear mounting |
| Group Of Product | standard yellow |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | empty control station |
| Device Short Name | XALK |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E |
| Control Station Application | emergency stop function || emergency switching off function |
| Cad Overall Depth | 53 mm |
| Colour Of Cover | yellow RAL 1021 |
| Main Group | 1 cut-out |
| Ik Degree Of Protection | IK05 EN 50102 |
| Colour Of Base Of Enclosure | light grey RAL 7035 |
| Overvoltage Category | class II IEC 60536 |
| Number Of Horizontal Rows | 1 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Number Of Vertical Rows | 1 |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Number Of Cut-Out | 1 cut-out |
| Package Quantity | 1 |
