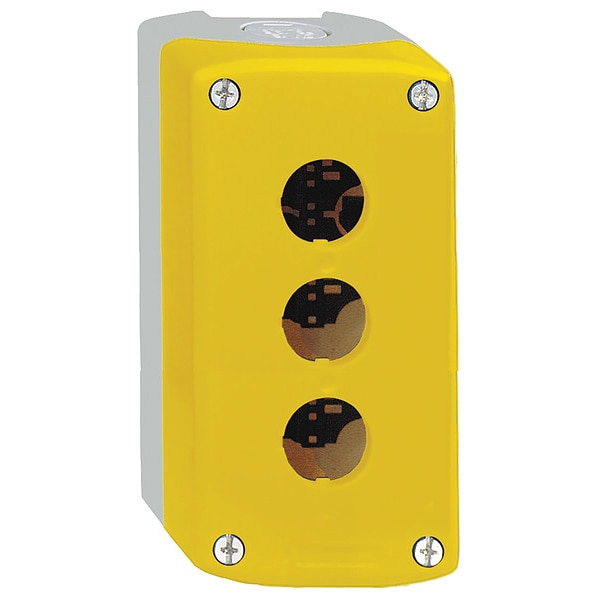

Gabinete de control, 22mm, 3 orificios, plástico.
| Number of Columns | 1 |
|---|---|
| Item | Control Station Enclosure |
| Material | Polycarbonate |
| Dimensions | 5.35 in H x 2.68 in W x 2.09 in D |
| NEMA Rating | 13, 4X |
| Cable Entry | 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Height | 5.35 in |
| Width | 2.68 in |
| Depth | 2.09 in |
| Color | Yellow |
| Standards | IP66 IEC 60529, IP67 Rating, IP69 Rating, IP69K Rating |
| Mounting Style | Front Mounting, Rear Mounting |
| Type | Control Station |
| For Use With | 22 mm Control and Signaling Units |
| Group Of Product | UL-CSA yellow |
| Ik Degree Of Protection | IK03 EN 50102 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Overvoltage Category | class II IEC 60536 |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Control Station Application | emergency stop function || emergency switching off function |
| Product Or Component Type | control station, empty station |
| Main Group | 1 cut-out |
| Colour Of Cover | yellow RAL 1021 |
| Number Of Vertical Rows | 1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Mounting Of Block | front mounting || rear mounting |
| Device Short Name | XALK |
| Number Of Cut-Out | 3 cut-outs |
| Number Of Horizontal Rows | 1 |
| Colour Of Base Of Enclosure | light grey RAL 7035 |
| Ambient Air Temperature For Operation | -40-70°C |
| Electrical Composition Code | SR1 || MF1 || SF1 || MR1 |
| Product Certifications | CSA || UL |
| Overall Depth | 2-1/16 in |
| Overall Width | 2-11/16 in |
| Compatible Conduit Size - Maximum | 14 mm |
| NEMA Enclosure Rating | 13, 4X |
| Panel Cutout Diameter | 22 mm |
| Overall Height | 5-3/8 in |
| Compatible with Series | XB5 |
| Package Quantity | 1 |
