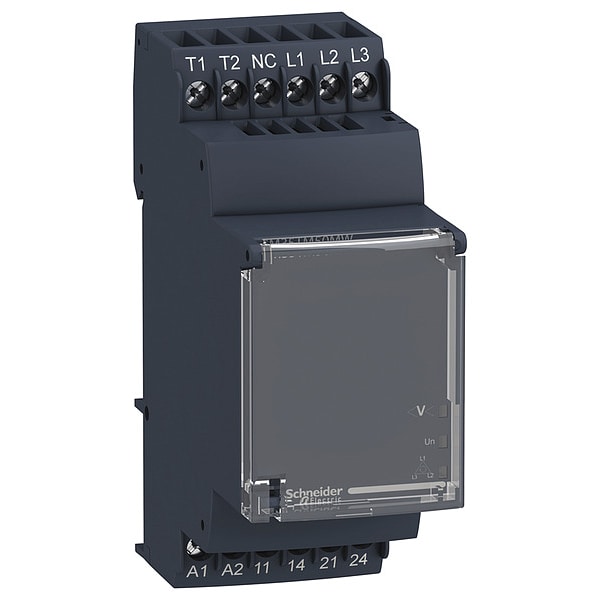

Relevador de control, 12 pines, 24 a 240V CA/CD.
| Item - Relay | Phase Monitor Relay |
|---|---|
| AC Contact Rating - Relay | 5A @ 250V |
| Number of Pins - Relay | 6 |
| Mounting - Relay | DIN Rail |
| Standards | C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed |
| Housing Material | plastic |
| Body Width - Relay | 1.38 in |
| Overall Height - Relay | 3.54 in |
| Body Height - Relay | 3.54 in |
| Item | Control Relay |
| Input Voltage | 24 to 240V AC/DC |
| Contact Form | DPDT |
| Phase Loss Sensitivity | Yes |
| Body Depth - Relay | 2.84 in |
| Overall Depth | 2.84 in |
| Restart | Auto |
| Body Height | 3.54 in |
| Contact Rating (AC) | 5 A @ 250V |
| Maximum Switching Capacity | 1,250 VA |
| Flat Pin Width | Not Applicable |
| Current Rating | 5 A |
| Base Shape | Square |
| Body Width | 1.38 in |
| Minimum Operating Temperature | -4 deg F |
| Body Depth | 2.84 in |
| Restart Time Delay | 1.5 sec |
| Contact Rating (DC) | 5 A @ 250V |
| Monitored Parameters | Overtemperature, Phase Failure, Phase Sequence, Undertemperature |
| IP Rating | IP30 |
| Number of Pins | 12 |
| Minimum Switching Current | 10 mA |
| Maximum Operating Temperature | 122 deg F |
| Mechanical Operating Durability | 30,000,000 |
| Maximum Switching Current | 5 A |
| Mounting Style | DIN Rail |
| Frequency | 50/60 Hz |
| Maximum Switching Voltage | 250V AC/DC |
| Electrical Operating Durability | 100,000 |
| Power Consumption | 1,250 VA |
| Weight | 4.64 oz |
| Supply Voltage Limits | 20.4-264 V AC || 20.4-264 V DC |
| Electromagnetic Compatibility | emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2 |
| Product Or Component Type | control relay |
| Electrical Durability | 10000 cycles |
| Overvoltage Category | III IEC 60664-1 |
| Non-Dissipating Shock Wave | 4 kV |
| Run-Up Delay At Power-Up | 500 msec |
| Output Contacts | 2 NO |
| Relay Monitored Parameters | phase sequence || motor temperature via PTC probe || phase failure detection |
| Control Circuit Frequency | 50...60 Hz +/- 10 % |
| Connections - Terminals | screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Switching Capacity In Va | 1,250 VA |
| [Ui] Rated Insulation Voltage | 400 V IEC 60664-1 |
| Maximum Resistance | 1500 Ohm temperature sensor 20°C |
| Local Signalling | for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow) |
| Operating Rate | <= 360 operations/hour full load |
| Nominal Output Current | 5 A |
| Contacts Type And Composition | 2 NO |
| Response Time | > 50 ms (input Y1 (contact Y1-T1) and push-button) |
| Ambient Air Temperature For Storage | -40-70°C |
| Maximum Power Consumption In W | 0.5 W DC |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP30 IEC 60529 casing) |
| Mechanical Durability | 30000000 cycles |
| Resistance Across Terminals | 602 mOhm |
| Vibration Resistance | 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1 |
| Relay Type | control |
| Ambient Air Temperature For Operation | -20-50°C |
| Tightening Torque | 0.6-1 N.m IEC 60947-1 |
| Shock Resistance | 15 gn 11 ms IEC 60255-21-1 |
| Voltage Range | 176...528 V |
| Measurement Range | 208...480 V voltage AC || 0...20 Ohm short-circuit detection |
| Product Certifications | GL || UL, GOST || C-tick || CSA |
| Utilisation Category | AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 |
| [Uc] Control Circuit Voltage | 24...240 V, <= 3.6 V temperature control circuit T1-T2 terminals open) |
| Tripping Threshold | 3100 Ohm +/- 10 % temperature control circuit |
| Operating Position | any position without derating |
| Measurement Voltage Limits | 176 to 528 V AC |
| Relay Name | RM35TM |
| Insulation Resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| Short-Circuit Current | 0.007 A temperature sensing circuit T1-T2 terminals short circuited) |
| Supply Frequency | 50/60 Hz +/- 10 % |
| Power Consumption In Va | 0-4 VA 24...240 V AC |
| Marking | CE |
| Pollution Degree | 3 IEC 60664-1 |
| Dielectric Test Voltage | 2 kV AC 50 Hz, 1 min |
| Time Delay Type | fixed 0.3 s |
| Reset Threshold | 1650 Ohm +/- 10 % temperature control circuit |
| Relative Humidity | 95-95 % 55-55°C IEC 60068-2-30 |
| Width | 35 mm |
| Product Specific Application | for 3-phase supply |
| Reset Time | 10000 ms output |
| Immunity To Microbreaks | 20 ms 20.4 V |
| Mounting Support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Package Quantity | 1 |
