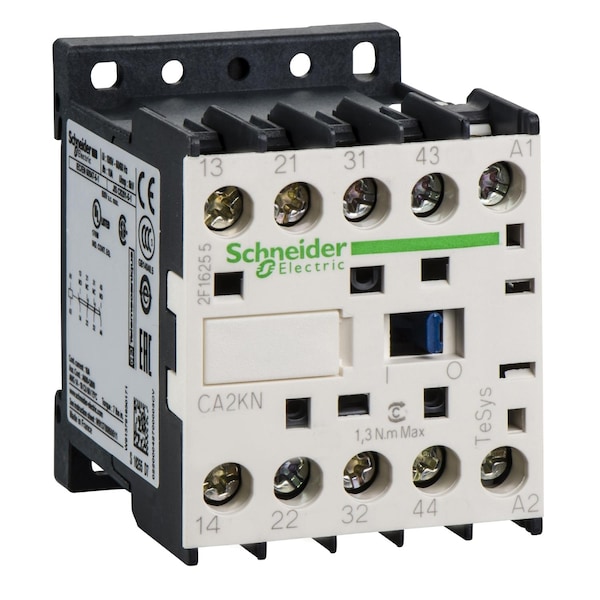

Relevador de control 600Vac 10Amp IEC +Opciones.
| Coil Volts | 600VAC |
|---|---|
| Item | Control Relay 600Vac 10Amp Iec +Options |
| Depth | 57 mm |
| Width | 45 mm |
| Standards | EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 |
| Height | 58 mm |
| Mechanical Durability | 10 Mcycles |
| Minimum Switching Current | 5 mA |
| Ip Degree Of Protection | IP2X |
| Connections - Terminals | screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end |
| Control Circuit Voltage Limits | drop-out 0.2...0.75 Uc 50°C) || operational 0.8...1.15 Uc 50°C) |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27 |
| Flame Retardance | V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102 |
| Protective Treatment | TC IEC 60068 |
| Product Certifications | CB Scheme || CCC || UL || CSA || EAC || CE || UKCA |
| Inrush Power In Va | 30-30 VA 20°C) |
| Operating Time | 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing || 15...25 ms coil de-energisation and NC closing || 5...15 ms coil energisation and NC opening |
| Hold-In Power Consumption In Va | 4.5-4.5 VA 20°C) |
| Utilisation Category | DC-13 || AC-15 |
| Device Short Name | CA2K |
| Ambient Air Temperature For Storage | -50-80°C |
| Ambient Air Temperature For Operation | -25-50°C |
| Contactor Application | control circuit |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Coil Technology | Built-in bidirectional peak limiting diode suppressor |
| Range | TeSys |
| Heat Dissipation | 1.3 to 1.3 W |
| [Ue] Rated Operational Voltage | <= 690 V <= 400 Hz |
| Maximum Operating Rate | 10000 cyc/h |
| Pole Contact Composition | 2 NO + 2 NC |
| Immunity To Microbreaks | 2 msec |
| [Ith] Conventional Free Air Thermal Current | 10 A 50°C |
| Non Overlap Distance | 0.5 mm |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Irms Rated Making Capacity | 110 A IEC 60947 |
| Product Name | TeSys CAK |
| Minimum Switching Voltage | 17 V |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14 |
| Mounting Support | plate || rail |
| Insulation Resistance | > 10 MOhm |
| Product Or Component Type | control relay |
| Control Circuit Type | AC 50/60 Hz |
| Associated Fuse Rating | 10 A gG IEC 60947 || 10 A gG VDE 0660 |
| Tightening Torque | 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2 |
| Package Quantity | 1 |
