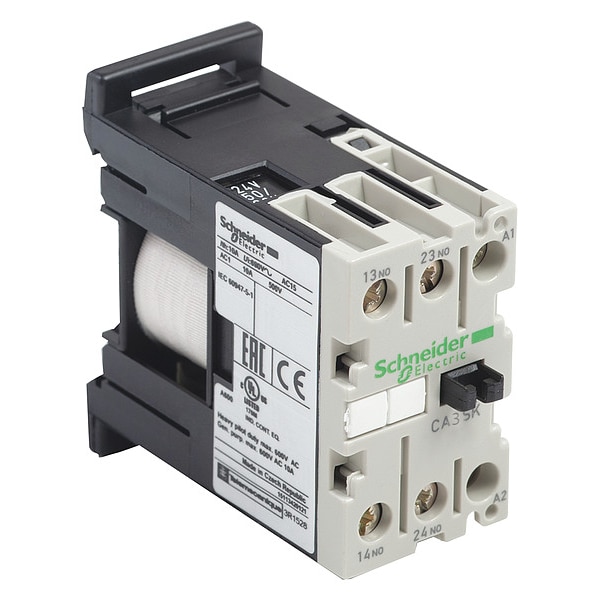

Relé de control, TeSys SK, 2NA, <= 690V, bobina de 110V CA
| Item | Sk Control Relays |
|---|---|
| Standards | EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1 |
| Mounting Support | rail, plate |
| Range | TeSys |
| [Uc] Control Circuit Voltage | 110 V AC 50/60 Hz |
| Pole Contact Composition | 2 NO |
| Control Circuit Type | AC 50/60 Hz |
| Associated Fuse Rating | 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947 |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Height | 56 mm |
| [Ue] Rated Operational Voltage | <= 690 V <= 400 Hz |
| Contactor Application | control circuit |
| Utilisation Category | AC-15, DC-13 |
| Protective Treatment | TC IEC 60068 |
| Operating Time | 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing |
| Ambient Air Temperature For Storage | -50-70°C |
| Depth | 55.5 mm |
| Device Short Name | CA2SK |
| Width | 27 mm |
| Connections - Terminals | screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end, screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14 |
| Tightening Torque | 0.8 N.m screw clamp terminals pozidriv No 1 |
| Maximum Operating Rate | 1200 cyc/h |
| Control Circuit Voltage Limits | drop-out: 0.2...0.75 Uc (at <50°C), operational: 0.85...1.1 Uc (at <50°C) |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Heat Dissipation | 1.4 to 1.4 W |
| Ambient Air Temperature For Operation | -20-50°C |
| Ip Degree of Protection | IP2X |
| Mechanical Durability | 10 Mcycles |
| Inrush Power In Va | 16-16 VA (at 20°C) |
| Product Name | TeSys CASK |
| Product or Component Type | control relay |
| Hold-In Power Consumption In Va | 4.2-4.2 VA (at 20°C) |
| Product Certifications | CB Scheme || cULus || EAC || CE || UKCA |
| Package Quantity | 1 |
