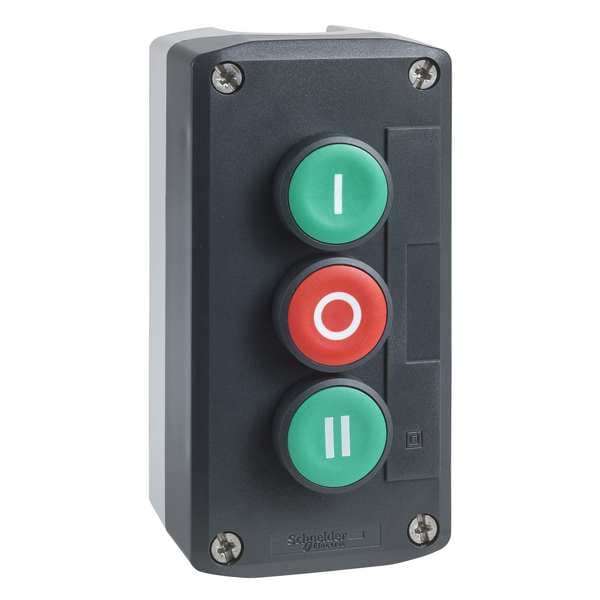

Estación de control, tamaño de 22mm, tamaño: 22 mm.
| Item | Control Station |
|---|---|
| Contact Form | 2NO |
| Basic Material | polycarbonate |
| Legend | Stop, Start |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 13, 4X |
| Series | Harmony |
| Hub Style | Feed-Thru |
| Size | 22 mm |
| Housing Color | light grey RAL 7035 |
| Standards | CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, UL Listed |
| Action | Momentary |
| Enclosure Material | Plastic |
| Terminal Connection | screw clamp terminal |
| Application | Start-Stop function |
| Number of Speeds | 1 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Operator Color | Red, Green |
| Enclosure Color | Dark Gray/Light Gray |
| Cable Entry | 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Mounting | Wall |
| Lamp Module Voltage | Module Not Included |
| Operator Configuration | Push Buttons |
| Hazardous Location Specification | Not Rated |
| Maintained Action Release | Not Applicable |
| Overall Height | 4.17 in |
| Overall Width | 2.68 in |
| Mounting Orientation | Not Applicable |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Hub Size - Maximum | 9/16 in |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | 13, 4X |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Product Type | Control Station |
| Overall Depth | 2.44 in |
| Selector Switch Number of Positions | Not Applicable |
| Pilot Light Color | Not Applicable |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
