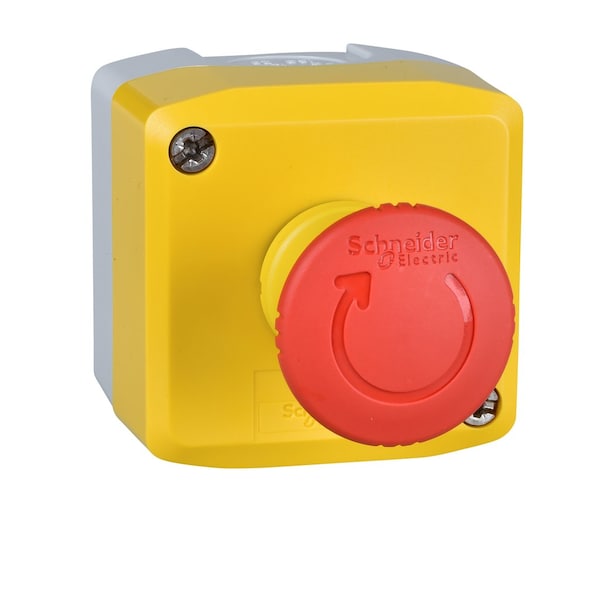

Estación de control, Harmony XALD, XALK, plástico, amarilla, 1 botón de presión de cabeza de seta roja de 40 mm, parada de emergencia giratoria para liberar, 1 contacto normalmente abierto + 1 contacto normalmente cerrado, sin marcar.
| Item | Yellow station - 1 red mushroom head pus |
|---|---|
| Standards | EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-5, EN/ISO 13850, EN/IEC 60947-5-1, JIS C 4520, IEC 60364-5-53, EN/IEC 60947-1, EN/IEC 60204-1 |
| Material | polycarbonate |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Colour of Cover | yellow RAL 1021 |
| Contacts Material | silver alloy |
| Cable Entry | 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm |
| Ip Degree of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4 |
| Control Station Composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Range of Product | Harmony XALK |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Contact Operation | slow-break |
| Protective Treatment | TH |
| Product or Component Type | control station |
| Control Station Application | emergency switching off function, emergency stop function |
| Ik Degree of Protection | IK03 EN 50102 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Overvoltage Category | class II IEC 60536 |
| Mechanical Durability | 300,000 cycle |
| Reset | turn to release |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Product Destination | for units |
| Operators Description | red unmarked 1 NO + 1 NC |
| Device Short Name | XALK |
| Operating Travel | 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1, IEC |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Operating Force | 44 N NC + NO changing electrical state |
| Operator Profile | 1 mushroom head push-button |
| Colour of Base of Enclosure | light grey RAL 7035 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Package Quantity | 1 |
