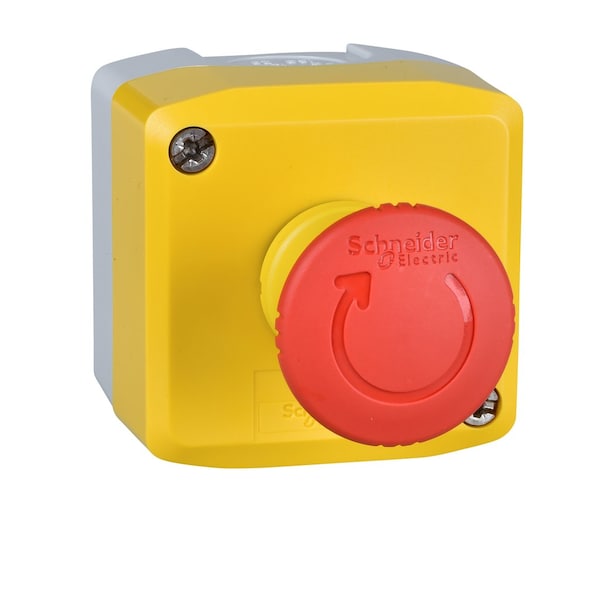

Estación de control, Harmony XALK, XALD, plástico, tapa amarilla, 1 botón rojo de seta de 40mm, giro para liberar, 1NO+2NC.
| Item | Push Button Enclosure 600Vac 10A Xalb Sp |
|---|---|
| Basic Material | polycarbonate |
| Type of Operator | 1 mushroom head push-button |
| NEMA Rating | NEMA 13 || NEMA 4X |
| Housing Color | light grey RAL 7035 |
| Contact Rating | slow-break |
| Standards | CSA C22.2 No 14 ||UL 508 |
| IP Rating | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Voltage | 600 V |
| Application | emergency switching off function || emergency stop function |
| Cable Entry | 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm |
| Terminal Connection | screw clamp terminal |
| Contacts Material | Silver alloy |
| Reset | turn to release |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Operating Travel | 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Range of Product | Harmony XALK |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Ik Degree of Protection | IK03 conforming to IEC 62262 |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4 |
| Ambient Air Temperature For Operation | -40-70°C |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Mechanical Durability | 300,000 cycle |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Device Short Name | XALK |
| Operating Force | 44 N NC + NO changing electrical state |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Overvoltage Category | class II IEC 60536 |
| Protective Treatment | TH |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Product or Component Type | control station |
| Colour of Cover | yellow RAL 1021 |
| Shape of Screw Head | cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Operators Description | red unmarked 1 NO + 2 NC |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Control Station Composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 2 NC unmarked |
| Positive Opening | With IEC 60947-5-1 appendix K |
| Package Quantity | 1 |
